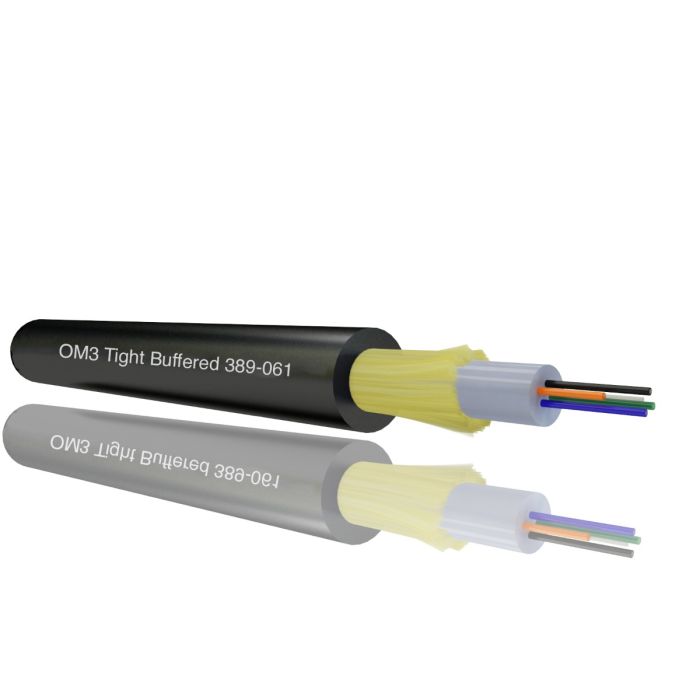

50/125 multimode tight buffered fibre optic cable
Mechanical Specification
| Fibre Cores | 4 | 8 | 12 | 16 | 24 |
| OD mm | 5.2 | 6 | 7 | 7.8 | 8.8 |
| Nominal Weight kg/km | 22 | 31 | 48 | 60 | 68 |
| Installation Tension N | 640 | 730 | 1100 | 1500 | 1500 |
| Crush Resistance N/10cm | 1000 | 1000 | 1000 | 1500 | 1500 |
Minimum Bend Radius: 20 x OD all fibre counts.
Operating Temperature: -20℃ to +60℃ for all fibre counts.
Technical Specifications
- Attenuation dB/Km: 850nm - 1300nm 2.4/3.0 - 0.7/1.0
- Minimum Bandwidth MHz/Km: 850nm - 1300nm 500 - 500
