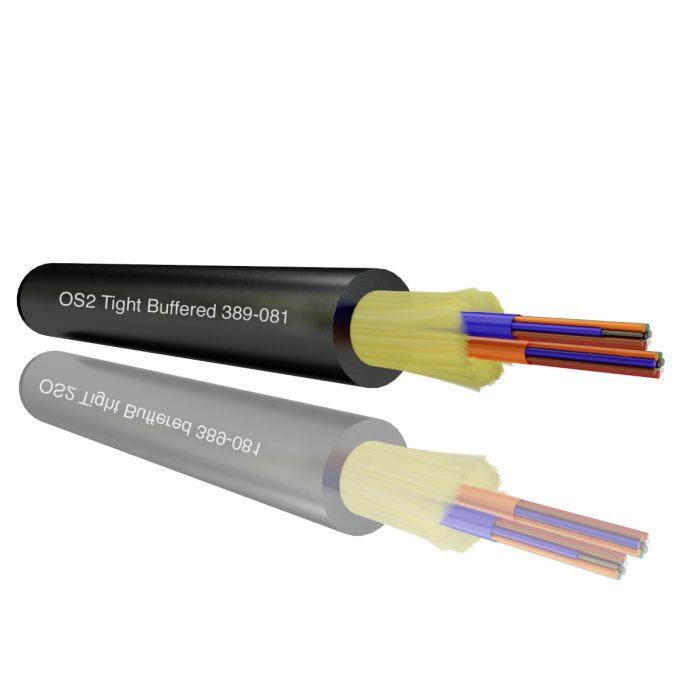

9/125 singlemode tight buffered fibre optic cable
Mechanical Specification
| Fibre Cores | 4 | 8 | 12 | 16 | 24 |
| ODmm | 5.2 | 6 | 7 | 7.8 | 8.8 |
| Nominal Weight kg/km | 22 | 31 | 48 | 60 | 68 |
| Installation Tension N | 640 | 730 | 1100 | 1500 | 1500 |
| Crush Resistance N/10cm | 1500 | 1500 | 1500 | 2000 | 2000 |
Minimum Bend Radius: 20 x OD all fibre counts
Operating Temperature: -20℃ to +60℃ all fibre counts.
Technical Specifications
- Attenuation dB/Km: 1310nm - 1550nm 0.320.4 - 0.21/0.3
- Dispertion coefficient ps (nm.Km): 1310nm - 1550nm 3.0 - 1.8 - 600
