NYS367 Panel Phono Socket Isolation 9 White
£1.59
In stock
SKU
201-345
- Buy 10 for £1.38 each and save 13%
Phono jack, gold plated contacts

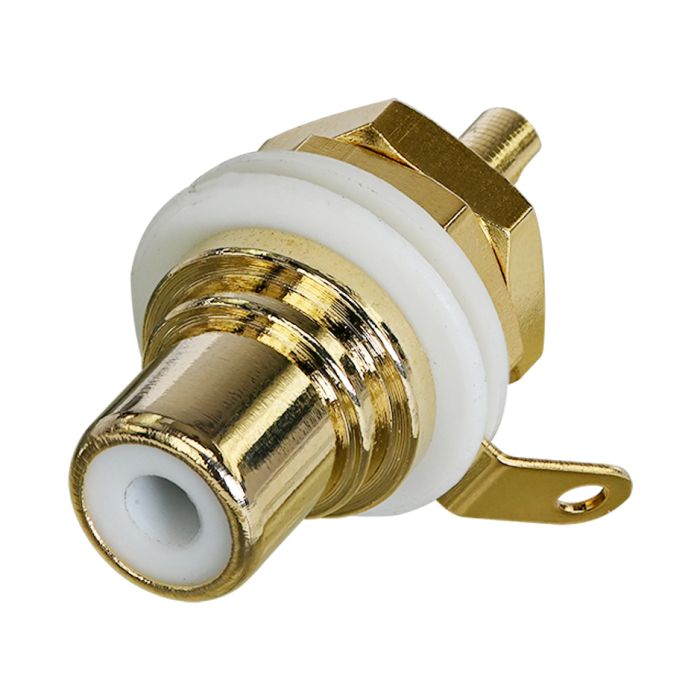

Neutrik NYS 367-9 White Isolation Phono Socket Panel
Rean circular panel mount phono connectors with gold-plated contacts and a choice of six identification colours.
Technical Information
Product
| Title | NYS367 |
| Connection Type | Phono ("RCA/Cinch") |
Electrical
| Contact Resistance | ≤10 mΩ |
| Insulation Resistance | >2000 MΩ(Initial) |
| Rated Voltage | 0.5 VAC |
Mechanical
| Insertion and Withdrawal Force | 5-20N |
| Lifetime | >5000 Mating Cycles |
Material
| Housing | Brass |
| Nut | Brass |
| Washer | PA+30%GF |
| Lug | Brass |
| Washer | PA+30%GF |
| Pin | Brass |
| Housing | Gold |
| Nut | Gold |
| Lug | Gold |
| Pin | Gold |
| Change Image | No |
|---|---|
| Type | Socket |
| Non-Priority | No |
| Price on Application | No |
