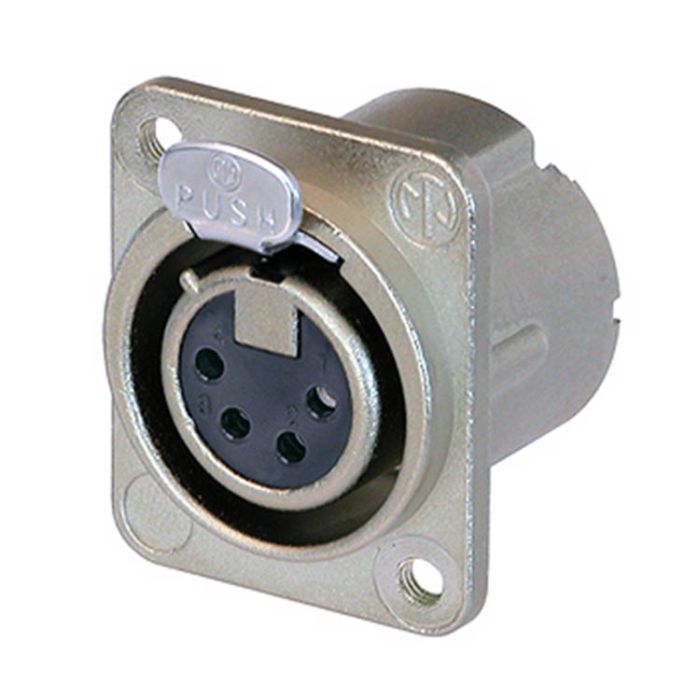

Neutrik NC4FD-LX-M3 4 pin Female chassis M3 tapped
£6.29
In stock
SKU
201-194
- Buy 10 for £5.28 each and save 16%
4 pole female receptacle, solder cups, Nickel housing, silver contacts, M3 mounting holes
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.
Features & Benefits
- All metal housing offers best overall RF protection and electromagnetic shielding
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Larger solder contacts for easier termination
- Optional connection to easily join pin1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Technical Information
Product
| Title | NC4FD-LX-M3 |
| Connection Type | XLR |
| Gender | female |
Electrical
| Capacitance between contacts |
≤ 7 pF |
| Contact resistance | ≤ 5 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 10 A |
| Rated voltage |
< 50 V |
Mechanical
| Insertion force |
≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 1.5 mm² |
| Wiresize | max. 16 AWG |
| Wiring | Solder contacts |
| Locking device |
Latch lock |
| Mounting direction | Rear mounting |
| Chassis shape | D |
| Mounting | Mounting holes with M3 threads |
Material
| Contact plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
Environmental
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Protection class |
IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
| Downloads Data | https://directcablesystems.com/media/downloads_data/nc4fd-lx-m3-1.pdf https://directcablesystems.com/media/downloads_data/nc4fd-lx-m3-2.dxf https://directcablesystems.com/media/downloads_data/ul-certificate-of-compliance-xlr-xx-rx-dl-dlx-series.pdf https://directcablesystems.com/media/downloads_data/01_neutrik_section_xlr_connectors_pg_en_202202-v23_opt.pdf |
|---|---|
| Change Image | No |
| Neutrik Code | NC4FD-LX-M3 |
| Datasheet | https://directcablesystems.com/media/downloads_data/nc4fd-lx-m3.pdf |
| Type | Nickel Housing-Silver Contacts-M3 Mounting Holes |
| Size | 4 Pin |
| Price on Application | No |
