NYS373 Phono Plug Gold Plated 9 White
£1.50
In stock
SKU
201-325
- Buy 10 for £1.30 each and save 13%
Phono plug, black housing, gold plated contacts, rubber anti-kink boot, chuck type strain relief, cable O.D. 3.5 - 6.1 mm

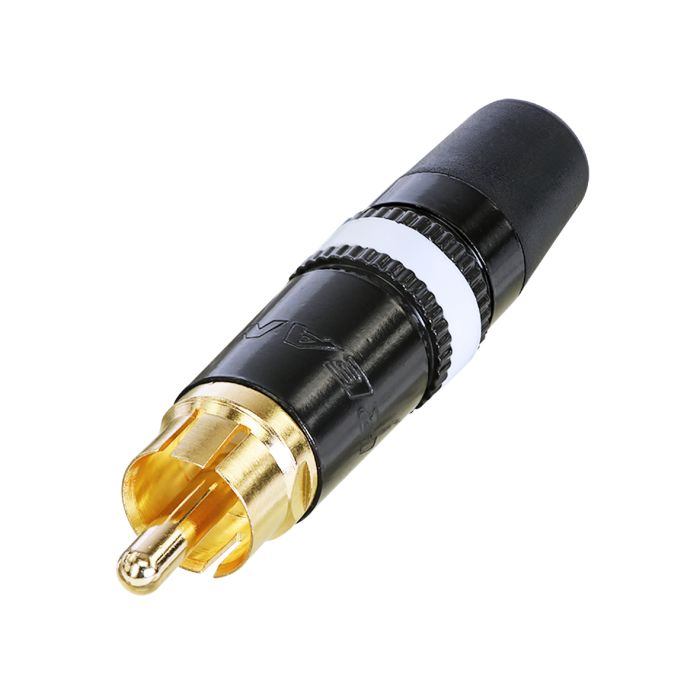

Neutrik NYS373-9 White and Gold Plated Phono Plug
Gold plated phono plugs which use the Neutrik style chuck strain relief system. Black bodies with a choice of six coloured identification markers. Each connector is supplied with two sizes of spring cable support.
Technical Information
Product
| Title | NYS373 |
| Connection Type | Phono ("RCA/Cinch") |
Electrical
| Contact Resistance | ≤10 mΩ |
| Insulation Resistance | >2000 MΩ(Initial) |
| Rated Voltage | 0.5 VAC |
Mechanical
| Insertion and Withdrawal Force | 5-20N |
| Lifetime | >5000 Mating Cycles |
Material
| Pin | Brass |
| Housing | Copper |
| Housing | Zinc |
| Boot | PVC |
| Ground Contact | H62 |
| Chuck | PA6 |
| Color dividing ring | Rubber |
| Elastic clamp | ABS |
| Pin | Gold |
| Housing | Gold |
| Ground Contact | Gold |
| Housing | Black |
| Change Image | No |
|---|---|
| Type | Plug |
| Non-Priority | No |
| Price on Application | No |
