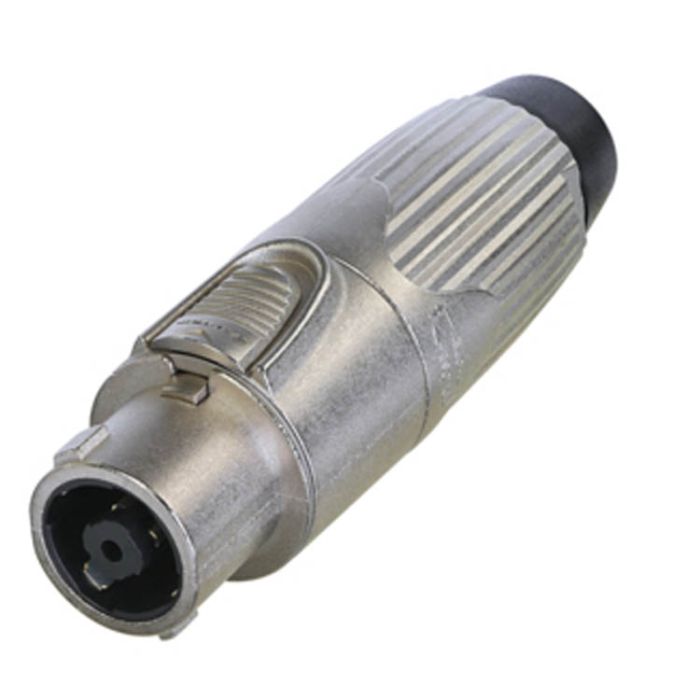

Neutrik NLT8FXX 8 Pole Female Cable Nickel
£22.69
In stock
SKU
201-375
- Buy 10 for £19.06 each and save 16%
8 pole female cable connector, metal housing, chuck type strain relief, solder contacts
This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984.
The speakON STXX Series was specially designed for heavy-duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all-metal housing.
Features & Benefits
- IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
- Current rating 30 A RMS
- Extremely robust metal housing and glass reinforced V-0 material insert designed for the harsh and demanding environment
- Precise “Quick Lock” system
- Compatible with complete speakON 8 pole product series
Technical Information
Product
| Title | NLT8FXX |
| Gender | Female |
Electrical
| Contact resistance | < 2 mΩ |
| Dielectric strength | 1.5 kVac |
| Insulation resistance | > 0.1 GΩ (after dampheat) |
| Rated current per contact | 25 A rms continuous (acc. to IEC 61984) |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an mains or power supply connector (AC / DC)! |
Mechanical
| Cable O.D. | 8 - 20 mm |
| Cable retention | ≥ 220 N (subject to cable O.D. and material) |
| Lifetime | > 5000 mating cycles |
| Wiresize | 1.5 mm² - 6 mm² |
| Wiresize | 10 AWG |
| Termination | Solder contacts |
| Locking device | Quick Lock (latch) |
Material
| Contact plating | Ag |
| Contacts | Copper Alloy |
| Insert | Polyamide (PA 6.6) |
| Locking element | Zinc diecast |
| Shell | Zinc diecast, Nickel plated |
| Strain relief | Polyacetal (POM) |
Environmental
| Temperature range | -30 °C to +80 °C |
| Flammability | UL 94 V-0 |
| Protection class | IP 50 (mated condition) |
| Solderability | Complies with IEC 68-2-20 |
| Downloads Data | https://directcablesystems.com/media/downloads_data/st-nlt8fxx.pdf https://directcablesystems.com/media/downloads_data/st-nlt8fxx.dxf https://directcablesystems.com/media/downloads_data/nlt8fxx.stp https://directcablesystems.com/media/downloads_data/bda_615_v2-speakon_stxx_series_nlt8fxx.pdf https://directcablesystems.com/media/downloads_data/certificate_cb_nl-73940.pdf |
|---|---|
| Change Image | No |
| Neutrik Code | NLT8FXX |
| Datasheet | https://directcablesystems.com/media/downloads_data/nlt8fxx.pdf |
| Type | Nickel Housing |
| Size | 8 pole |
| Price on Application | No |
| Non-Priority | No |
