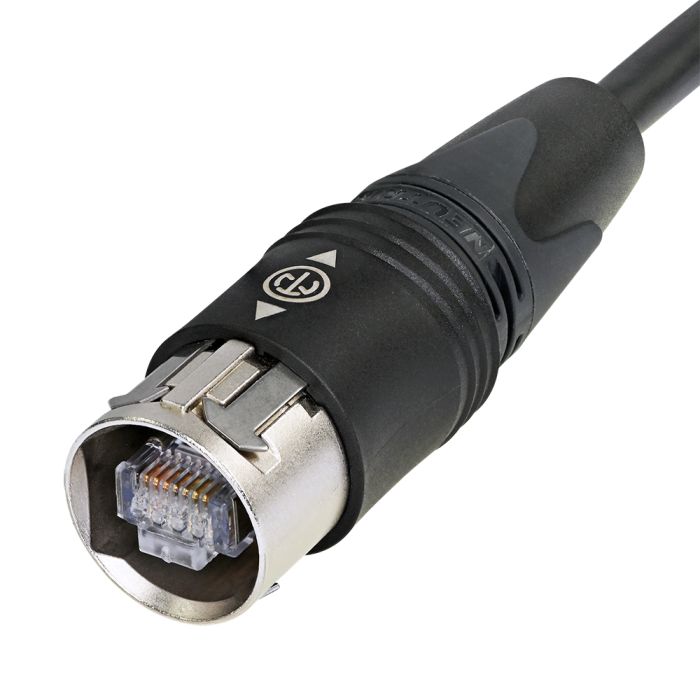

Neutrik NKE6S Ethercon CAT6 Cable 10M
£68.64
In stock
SKU
201-442-10
- Buy 10 for £57.66 each and save 16%
Features & Benefits
- CAT6 compliant - data rate up to 10 GBit/s
- CAT6 performance - fast data transmission and high bandwidth applications
- CAT6 specifications according to TIA / EIA 568B, ISO / IEC 11801, EN 50173
- IP65 - Dust and waterproof in mated condition
- Shielded system - high noise immunity and EMI protection
- Push Pull mating - secure and proven locking system
- Ready-made patch cables with rugged cable carrier and unique chuck typestrain relief
The preassembled etherCON CAT6 patch cables use a shielded S/FTP cable with cable plug carrier offering a robust metal shell and Push-Pull locking system.
Attention! Intermates ONLY with NE8FDY-C6* Cat 6 receptacles.
Not compatible with CAT5 and CAT6A chassis connectors.
Technical Information
Product
| Title | NKE6S-* |
| Gender | male |
Electrical
| Contact resistance | < 10 mΩ |
| Dielectric strength | 1 kVdc |
| Frequencyrange | 1 - 250 MHz |
| Insulation resistance | ≥ 0.5 GΩ |
| Rated current per contact | 1,5 A |
| Rated voltage |
< 50 V |
Mechanical
| Insertion force |
≤ 40 N |
| Withdrawal force | ≤ 40 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | 8 x AWG 27/7 mm² |
| Locking device |
Push-Pull |
Material
| Boot | Polyurethan |
| Contact plating | 0.7 µm Au over 1.2 µm Ni plating |
| Contacts | 0.7 µm Au over 1.2 µm Ni plating |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
Environmental
| Flammability | UL 94 HB |
| Standard compliance | CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN 50173 |
| Protection class |
IP 65 |
| Temperature range | -10 °C to +60 °C |
| Downloads Data | https://directcablesystems.com/media/downloads_data/nke6s-1.pdf https://directcablesystems.com/media/downloads_data/nke6s-1-1.dxf https://directcablesystems.com/media/downloads_data/3p-attestion-of-conformity.pdf https://directcablesystems.com/media/downloads_data/3p-electrical-performance-testing.pdf https://directcablesystems.com/media/downloads_data/delta-attestion-of-conformity.pdf https://directcablesystems.com/media/downloads_data/ghmt-certificate.pdf https://directcablesystems.com/media/downloads_data/experts-report-ethercon-cat6.pdf |
|---|---|
| Change Image | No |
| Neutrik Code | NKE6S-10 |
| Datasheet | https://directcablesystems.com/media/downloads_data/nke6s.pdf |
| Length | 10 M |
| Price on Application | No |
| Non-Priority | No |
