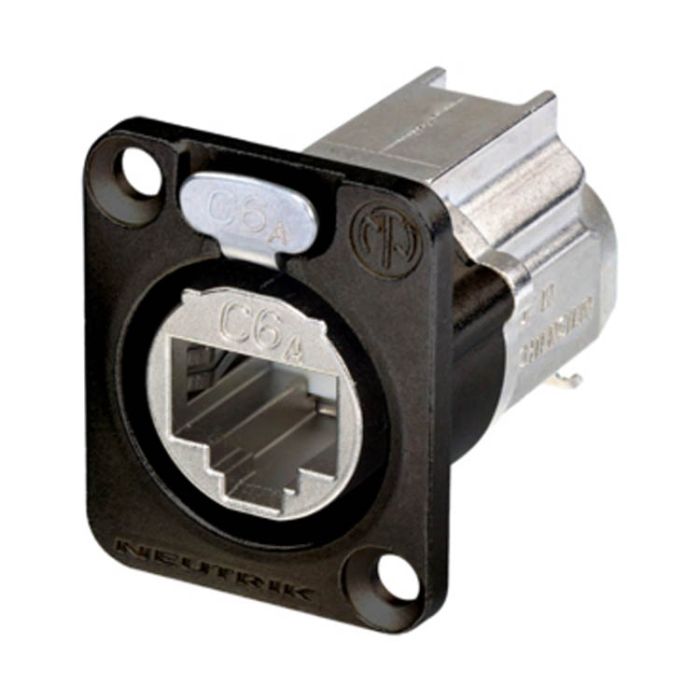

Neutrik NE8FDX-Y6-B CAT6A Shielded Panel Mount IDC Termination Black

£18.82

In stock

SKU

201-475

D-shape CAT6_A panel connector, shielded, IDC termination, black chrom housing

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Ruggedized connector with CAT6_A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
PoE++ compliant according to 802.3bt Type4
Rugged latch lock system million fold proven
Intermateable with the existing etherCON CAT5 range
Shielded system - high noise immunity and EMI protection

Product

Title	NE8FDX-Y6-B
Gender	female

Electrical

Dielectric strength	1 kVdc
Insulation resistance	> 0.5 GΩ
Rated current per contact	1.5 A
Transmission performance	CAT6A, acc. TIA/EIA rating CAT6_A, acc. IEC/ISO/EN rating
Power over Ethernet	PoE++ acc. IEEE 802.3bt

Mechanical

Lifetime	> 1000 mating cycles
Wiresize	solid: AWG 26/1 - AWG 22/1 stranded: AWG 26/7 - AWG 22/7
Locking device	Latch lock
Mounting direction	Front mounting
Insulation diameter	0.85 - 1.6 mm

Material

Environmental

Flammability	UL 94 V-0
Temperature range	-40 °C to + 70 °C

More Information
Downloads Data	https://directcablesystems.com/media/downloads_data/bda_430-ethercon_c6a-chassis_connector.pdf https://directcablesystems.com/media/downloads_data/test-report-ne8fdx-y6.pdf https://directcablesystems.com/media/downloads_data/ntp07-ethercon-cat6a.pdf https://directcablesystems.com/media/downloads_data/whitepaper_cat6a_v5-1.pdf https://directcablesystems.com/media/downloads_data/ne8fdx-y6.dxf https://directcablesystems.com/media/downloads_data/ne8fdx-y6-1.pdf https://directcablesystems.com/media/downloads_data/d-ne8fdx-y6.stp
Change Image	No
Neutrik Code	NE8FDX-Y6-B
Datasheet	https://directcablesystems.com/media/downloads_data/ne8fdx-y6-b.pdf
Type	Black Housing
Price on Application	No
Non-Priority	No
