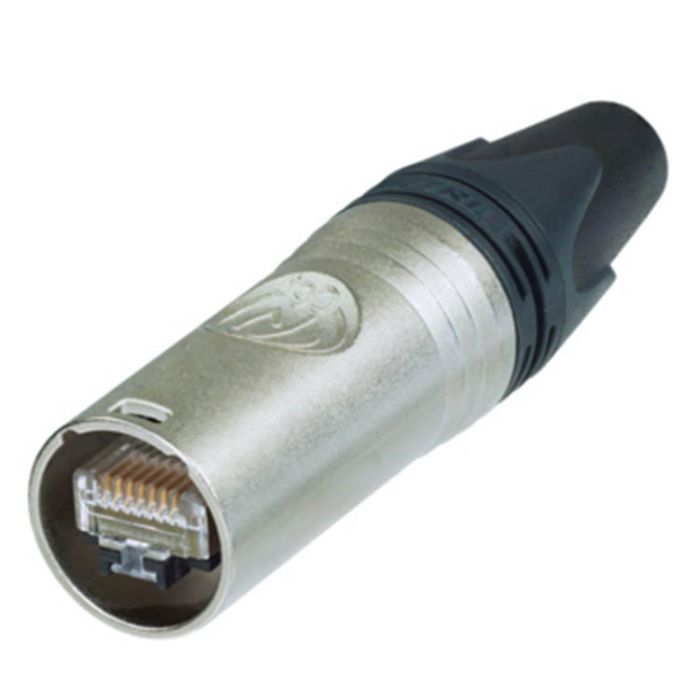

Neutrik NE8MX6 Ethercon CAT6A Cable Connector Nickel
£14.29
In stock
SKU
201-470
- Buy 10 for £12.00 each and save 16%
Features & Benefits
- Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
- PoE++ compliant according to 802.3bt Type4
- IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
- Rugged latch lock system million-fold proven
- intermateable with the existing etherCON CAT5 range
- Unique Neutrik chuck-type strain relief
etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, nickel plating.
The set NE8MX6 consists of a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief, and a CAT6A compliant RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG24/1 - AWG22/1 (solid) or AWG24/7 - AWG22/7 (stranded).
Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.
Technical Information
Product
| Title | NE8MX6 |
| Gender | Male |
Electrical
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 0.5 GΩ |
| Rated current per contact | 1.5 A |
| Transmission performance | CAT6A, acc. TIA/EIA rating CAT6A, acc. IEC/ISO/EN rating |
| Power over Ethernet | PoE++ acc. IEEE 802.3bt |
Mechanical
| Cable O.D. | 7.0 - 9.5 mm |
| Lifetime | > 1000 mating cycles |
| Wiresize | AWG 24/1 - AWG 22/1 (solid) |
| AWG 24/7 - AWG 22/7 (stranded) | |
| Locking device | Latch lock |
| Insulation diameter | 1.1 - 1.6 mm |
Material
| Bushing | PA / PU |
| Contact plating | Au |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | POM |
Environmental
| Protection class | IP 65 (in combination with NE8FDX-*6-W) |
| Temperature range | -40 °C to +70 °C |
| Downloads Data | https://directcablesystems.com/media/downloads_data/bda_428_v5-ne8mx-6-ethercon_c6a-cable_connector-202208.pdf https://directcablesystems.com/media/downloads_data/test-report-ne8mx6.pdf https://directcablesystems.com/media/downloads_data/ntp07-ethercon-cat6a.pdf https://directcablesystems.com/media/downloads_data/iec-60529-neutrik-sne8fdx-6-w.pdf https://directcablesystems.com/media/downloads_data/whitepaper_cat6a_v5-1.pdf https://directcablesystems.com/media/downloads_data/ne8mx6-1.dxf https://directcablesystems.com/media/downloads_data/ne8mx6-2.pdf |
|---|---|
| Change Image | No |
| Neutrik Code | NE8MX6 |
| Datasheet | https://directcablesystems.com/media/downloads_data/ne8mx6.pdf |
| Type | Nickel Housing-Silver Contacts |
| Price on Application | No |
| Non-Priority | No |
