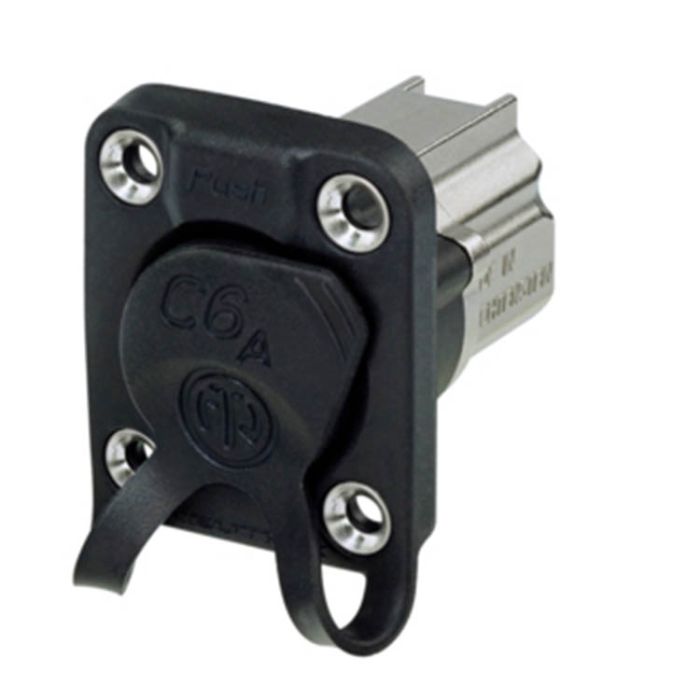

Neutrik NE8FDX-Y6-W Cat6A shielded panel mount IDC termination intergrated rubber sealing cap IP65
£19.32
In stock
SKU
201-477
- Buy 10 for £16.23 each and save 16%
D-shape CAT6A panel connector, shielded, IDC termination with rubber sealing, IP65 when mated, nickel housing
Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
Features & Benefits
- Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
- PoE++ compliant according to 802.3bt Type4
- Rugged latch lock system million fold proven
- IP65 ingress protection in mated condition and unmated when sealing cap is closed
- Intermateable with the existing etherCON CAT5 range
- Shielded system - high noise immunity and EMI protection
Technical Information
Product
| Title | NE8FDX-Y6-W |
| Gender | female |
Electrical
| Dielectric strength | 1 kVdc |
| Insulation resistance | > 0.5 GΩ |
| Rated current per contact | 1.5 A |
| Transmission performance | CAT6A, acc. TIA/EIA rating CAT6A, acc. IEC/ISO/EN rating |
| Power over Ethernet | PoE++ acc. IEEE 802.3bt |
Mechanical
| Lifetime | > 1000 mating cycles |
| Wiresize | solid: AWG 26/1 - AWG 22/1 stranded: AWG 26/7 - AWG 22/7 |
| Locking device |
Latch lock |
| Mounting direction | Front mounting |
| Insulation diameter | 0.85 - 1.6 mm |
Material
| Contact plating | Au |
| Gasket | Rubber (EPDM) |
| Shell | Zinc diecast (ZnAl4Cu1) |
Environmental
| Flammability | UL 94 V-0 (not applicable for the rubber sealing) |
| Protection class |
IP 65 |
| Temperature range | -40 °C to + 70 °C |
| Change Image | No |
|---|---|
| Neutrik Code | NE8FDX-Y6-W |
| Datasheet | https://directcablesystems.com/media/downloads_data/ne8fdx-y6-w.pdf |
| Type | Shielded Panel Mount IDC Termination |
| Price on Application | No |
| Non-Priority | No |
