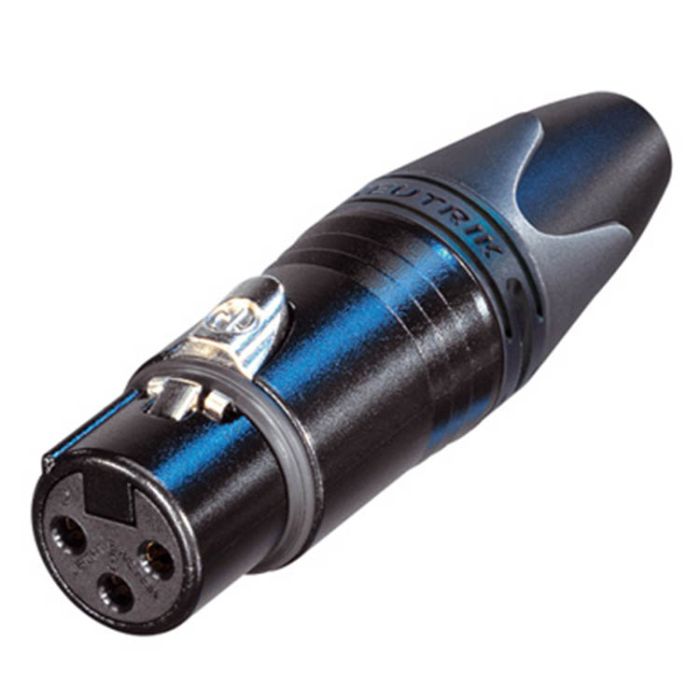

Neutrik NC3FXX-BAG XX Series 3 Pin Female Cable Black
£4.15
In stock
SKU
201-503
- Buy 10 for £3.49 each and save 16%
Features & Benefits
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well protected against any damage
3 pole female cable connector with black metal housing and silver contacts.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Technical Information
Product
| Title | NC3FXX-BAG |
| Connection Type | XLR |
| Gender | female |
Electrical
| Capacitance between contacts |
≤ 4 pF |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 16 A |
| Rated voltage |
< 50 V |
Mechanical
| Cable O.D. | 3.5 - 8.0 mm |
| Insertion force |
≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 2.5 mm² |
| Wiresize | max. 14 AWG |
| Wiring | Solder contacts |
| Locking device |
Latch lock |
Material
| Boot | Polyurethan |
| Contact plating | 2 µm Ag |
| Contacts | Bronze (CuSn8) |
| Insert | Polyamide (PA66) |
| Locking element | Zinc diecast (ZnAl4Cu1) / Ck 67 (spring |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Strain relief | Polyacetal (POM) |
Environmental
| Approvals |
|
| Flammability | UL 94 V-0 |
| Standard compliance | IEC 61076-2-103 |
| Protection class |
IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
| Downloads Data | https://directcablesystems.com/media/downloads_data/nc3fxx-1.pdf https://directcablesystems.com/media/downloads_data/nc3fxx-2.dxf https://directcablesystems.com/media/downloads_data/xlr-xx-series.pdf https://directcablesystems.com/media/downloads_data/ul-certificate-of-compliance-xlr-xx-rx-dl-dlx-series.pdf https://directcablesystems.com/media/downloads_data/01_neutrik_section_xlr_connectors_pg_en_202202-v23_opt.pdf |
|---|---|
| Change Image | No |
| Neutrik Code | NC3FXX-BAG |
| Datasheet | https://directcablesystems.com/media/downloads_data/nc3fxx-bag.pdf |
| Type | Black Metal Housing-Silver Contacts |
| Size | 3 Pin |
| Price on Application | No |
| Non-Priority | No |
