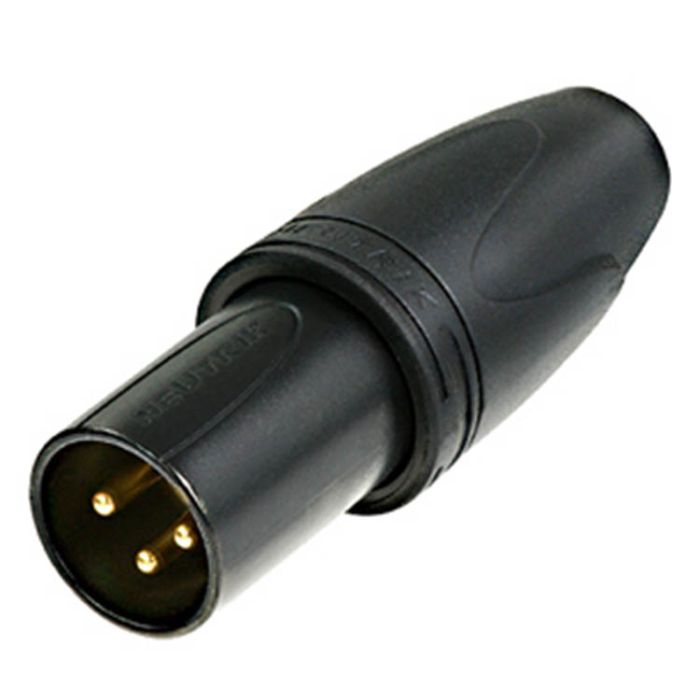

Neutrik NC3MXX-HD-B-D 3 Pin IP67 Male Cable Black
£7.81
In stock
SKU
201-543
- Buy 10 for £6.56 each and save 16%
Features & Benefits
- Dust and water ingress sealing according to IP67 in combination with HD cable connector NC3FXX-HD*
- Rubber sealing jacket protects against water ingress and mechanical shock
- Gold contacts
Heavy duty male 3 pole XLR cable connector, black housing, for outdoor use.
Technical Information
Product
| Title | NC3MXX-HD-B-D |
| Connection Type | XLR |
| Gender | male |
Electrical
| Capacitance between contacts |
≤ 4 pF |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 16 A |
| Rated voltage |
< 50 V |
Mechanical
| Cable O.D. | 6.0 - 8.0 mm |
| Insertion force |
≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 2.5 mm² |
| Wiresize | max. 14 AWG |
| Wiring | Solder contacts |
| Locking device |
Latch lock |
Material
| Boot | Polyurethan |
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA66) |
| Locking element | Zinc diecast (ZnAl4Cu1) / Ck 67 (spring) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Strain relief | Polyacetal (POM) |
| Sealing jacket | EPDM |
Environmental
| Flammability | UL 94 V-0 |
| Standard compliance | IEC 61076-2-103 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
| Downloads Data | https://directcablesystems.com/media/downloads_data/nc3mxx-hd-1.pdf https://directcablesystems.com/media/downloads_data/nc3mxx-hd-2.dxf https://directcablesystems.com/media/downloads_data/xlr-xx-hd-series.pdf https://directcablesystems.com/media/downloads_data/xlr-hd-ip65-ip67.pdf https://directcablesystems.com/media/downloads_data/ul-certificate-of-compliance-xlr-xx-rx-dl-dlx-series.pdf https://directcablesystems.com/media/downloads_data/01_neutrik_section_xlr_connectors_pg_en_202202-v23_opt.pdf |
|---|---|
| Change Image | No |
| Neutrik Code | NC3MXX-HD-B-D |
| Datasheet | https://directcablesystems.com/media/downloads_data/nc3mxx-hd-b-d.pdf |
| Type | Black Housing |
| Size | 3 Pin |
