Evolution XPC OFC 1 Pair Heavy Duty Per Metre

£1.22
In stock
SKU
301-031HD
  • Buy 10 for £1.06 each and save 13%

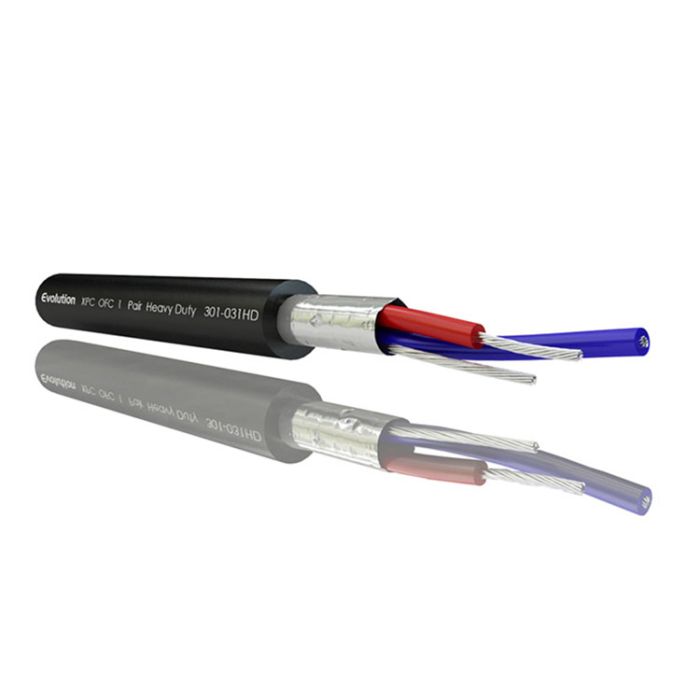

Evolution XPC OFC Heavy Duty 1 Pair is constructed exactly the same as the standard 1 pair but with larger conductors (0.5mm). Ideally suited where a low loss cable is required or where you need to run DC power over extended distances.



Technical Specifications
  • Conductors:
    16 x 0.20mm
    20 AWG pure OFC copper

  • Insulation:
    XPLE cross-lined polythene

  • Screen:
    Aluminium foil

  • Drain:
    16 x 0.20mm
    20 AWG pure OFC copper tinned

  • Jacket:
    Flexible matt black abrasion resistant PVC
  • Operating temp:
    -20℃ - +70℃

  • Capacitance:
    100pF/m core to core
    190pF/m core to screen

  • Resistance:
    38Ohm/m

  • Overall diameter:
    1 pair 5.1mm
    2 pair 8.0mm
More Information
Change Image No
Size 1 Pair
Datasheet https://directcablesystems.com/media/datasheets/301-031hd_-_evolution_xpc_ofc_1_pair_heavy_duty.pdf
