Evolution XPC OFC Professional 1 Pair 110 ohm LSOH

£0.84
In stock
SKU
301-110
  • Buy 10 for £0.73 each and save 13%

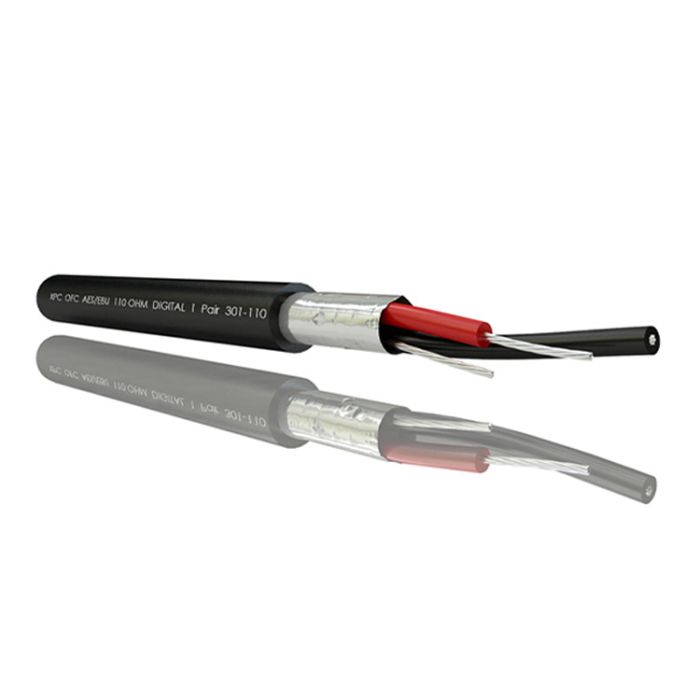

Evolution XPC OFC 110 Ohm 1 pair is a low resistance cable designed for digital signal transmission where a small diameter cable is required ideally suited to the rack, patchbay, and installation use. The 24 AWG foil-screened pairs are over-sheathed with Evolution's fully compliant LSOH outer jacket.
Technical Specifications
  • Conductor:
    7 x 0.20mm Pure OFC copper

  • Insulation:
    Foam PE 1.4mm

  • Screen:
    Aluminum/polyester tape 100% coverage

  • Drain:
    7 x 0.20mm 24 AWG pure tinned copper
  • Overall Jack:
    Flexible black LSOH

  • Operating temp:
    -20℃ to +70℃

  • Resistance:
    88.6 Ohm

  • Impedance:
    100 Ohm

  • Capacitance:
    46pF/m nominal
More Information
Change Image Yes
Type LSOH
Size 1 Pair
Datasheet https://directcablesystems.com/media/datasheets/301-110_-_evolution_xpc_ofc_professional_1_pair_110_ohm_lsoh.pdf
