Evolution XPC OFC Professional 1 Pair White Per Metre

£0.66
In stock
SKU
301-035
  • Buy 10 for £0.57 each and save 14%

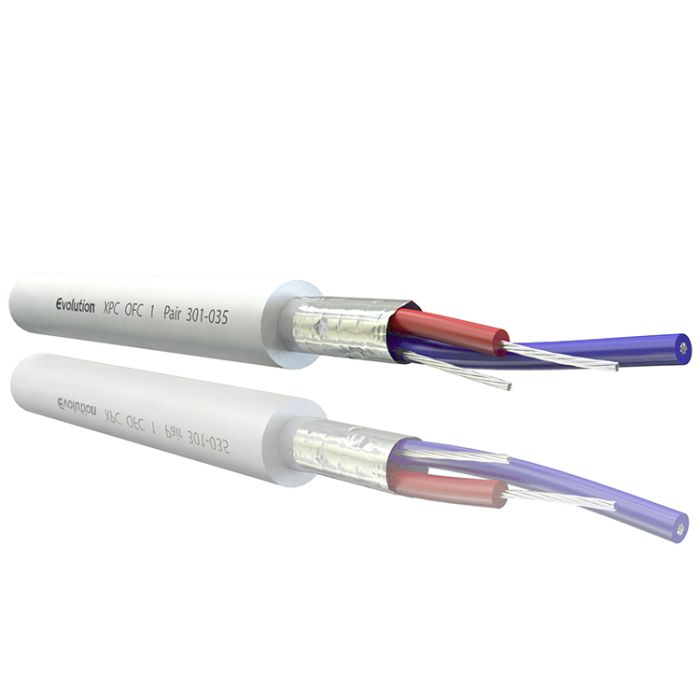

Evolution XPC OFC 1 pair is designed for use where a small diameter balanced signal is required such as inter-rack wiring or patchbay termination. Evolution have taken the design policy for their standard cables and employed the same technology into this high specification installation cable. 24 AWG OFC XLPE conductors are twisted together with a drain wire and then screened in an aluminium foil for 100% coverage. The foil screen is then bonded to the overall PVC/neoprene jacket for one strip preparation.
Technical Specifications
  • Conductors:
    7 x 0.20mm
    24 AWG pure OFC copper

  • Insulation:
    XLPE cross lined polythene

  • Screen:
    Aluminium foil

  • Drain:
    7 x 0.20mm
    24 AWG pure OFC copper tinned

  • Jacket:
    Flexible matt black abrasion resistant PVC
  • Operating Temp:
    -20℃ - +70℃

  • Capacitance:
    85pF/m core to core
    130pF/m core to screen

  • Resistance:
    85 Ohm/Km

  • Overall Diameter:
    3.50mm
More Information
Change Image No
Size 1 Pair
Datasheet https://directcablesystems.com/media/datasheets/301-035_-_evolution_xpc_ofc_professional_1_pair_white.pdf
