Neutrik opticalCON DUO Multimode
Features & Benefits
- Ruggedized and dirt-protected fiber optic connection system
- Waterproof acc. to IP65 safety standard in mated condition
- 2-pole military-approved robust and lightweight mobile field cable with multi- or single-mode fibres
- opticalCON multimode fibre cables offer laser and bend-optimized OM3 fibres
- Accommodates standard optical LC-Duplex connectors
- Cable connector features rugged all-metal housing and heavy-duty cable retention
- Excellent dust and dirt protection due to automatic sealing shutter with silicone gasket
- Reliable Push-Pull locking mechanism
- Easy to clean, no special tools required
- Available in different packaging versions

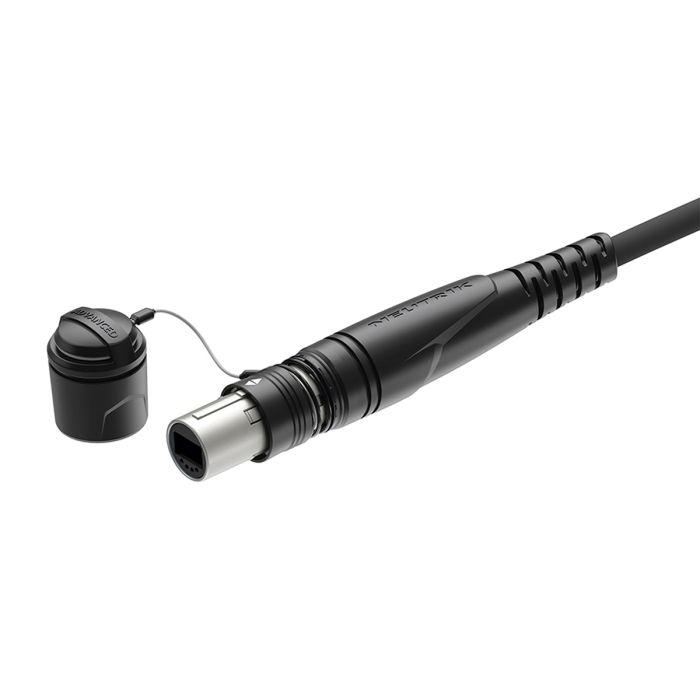

Neutrik OpticalCON Duo Multimode Cable
Assembled extra rugged hybrid cable with 2 multi-mode fibres and 4 x 0.75 mm2 copper conductors, GFK strength member and aramid yarn as cable retention. Low-weight robust hybrid cable, only 78kg/km. Optimized design for opticalCON termination. Most suitable for powered applications in audio and video use. The opticalCON DUO cable connector accommodates a standard optical LC-Duplex connector in a ruggedized and durable all-metal housing. It features a spring-loaded push-pull locking mechanism and excellent cable retention utilizing aramid yarn. The optical connection is exceptionally well protected against dirt and dust by an automatically operated sealing cover. The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on a drum or airspool.
Technical Information
Product
| Title | opticalCON DUO |
| Gender | Male |
Mechanical
| Cable retention | 500 N |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 5000 mating cycles |
| Wiresize | |
| Locking device | Push-Pull |
Material
| Boot | Rubber (EPDM) |
| Bushing | Zinc diecast (ZnAl4Cu1) |
| Insert | Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Strain relief | Polyacetal (POM) (brass) |
Environmental
| Temperature range | -40°C to +75 °C |
Optical
| Insertion loss | < 0.5 dB / connection |
| Optical connector | LC-Duplex (PC and APC) |
| Optical wiring | ISO / IEC 11801 |
Mobile cable
| Colour | black, matte |
| Core diameter | Singlemode 9 µm, Multimode 50 µm |
| Cladding diameter | 125 µm |
| Comment | PUR |
| minimal bending radius | 5 cm |
| Number of fibers | 2 |
| Cable retention | Aramid yarn |
| Weight | 23 kg/km |
| Overal diameter | 5 mm |
| Downloads Data | https://directcablesystems.com/media/downloads_data/3d_ansicht_no2_x-a_standard.stp https://directcablesystems.com/media/downloads_data/strichzeichnung_nko2_-a.dxf https://directcablesystems.com/media/downloads_data/strichzeichnung_nko2_-a.pdf https://directcablesystems.com/media/downloads_data/bda_520_v2-opticalcon_duo_handling_instruction.pdf https://directcablesystems.com/media/downloads_data/opticalcon-duo-technical-paper-v4.pdf https://directcablesystems.com/media/downloads_data/opticalcon-availability.pdf https://directcablesystems.com/media/downloads_data/reference-projects-opticalcon.pdf https://directcablesystems.com/media/downloads_data/neutrik-opticalcon_pg-nf05_v27-2023_01.pdf https://directcablesystems.com/media/downloads_data/opticalcon-audio-video-lighting-application.pdf https://directcablesystems.com/media/downloads_data/opticalcon-broadcast-application-ob-truck.pdf https://directcablesystems.com/media/downloads_data/nds01-opticalcon_duo_advanced.pdf |
|---|---|
| Change Image | Yes |
| Neutrik Code | ANKO2M-A-0-50-200 |
| Datasheet | https://directcablesystems.com/media/downloads_data/opticalcon-duo.pdf |
