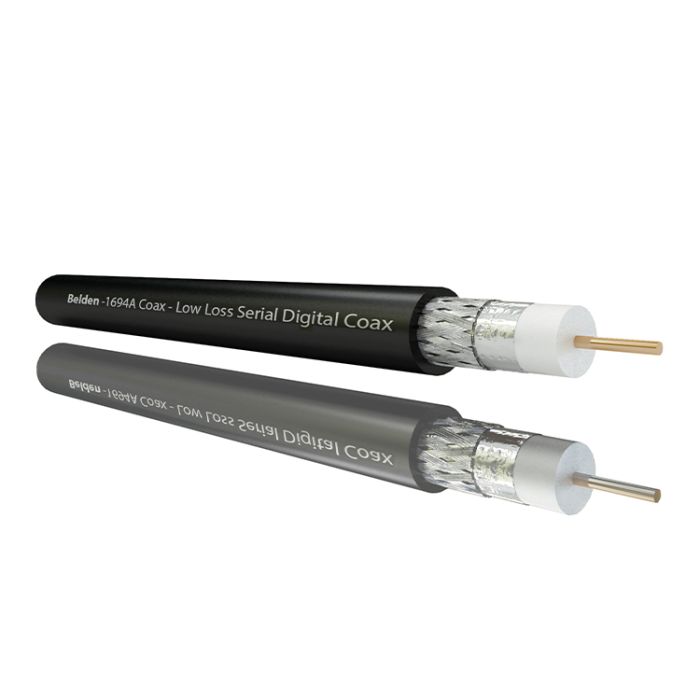

Belden Brilliance 1694A HD Video Cable Black
-
Buy 10 for
£2.48
each and save 14%
Technical Specifications
- Conductor:
1 # COAX ,18 AWG Solid
Material : BC - Bare Copper
Diameter: 1.016 mm
RG Type: 6/U
- Insulation:
Material: Gas-injected FHDPE - Foam High Density Polyethylene
Diameter: 4.572 mm
- Shield:
Layer #1: Duofoil® Tape Aluminum Foil-Polyester Tape-Aluminum Foil
Layer #2: Braid TC - Tinned Copper
|
- Jacket:
Material: PVC - Polyvinyl Chloride
Overall Nominal Diameter: 6.960 mm
- Weight:
61.016 Kg/Km
- Max. Pulling Tension:
306.926 N
- Min. Bend Radius/Minor Axis:
69.850 mm
|
More Information
| Change Image |
Yes |
| Datasheet |
https://directcablesystems.com/media/datasheets/1694A_techdata.pdf |
