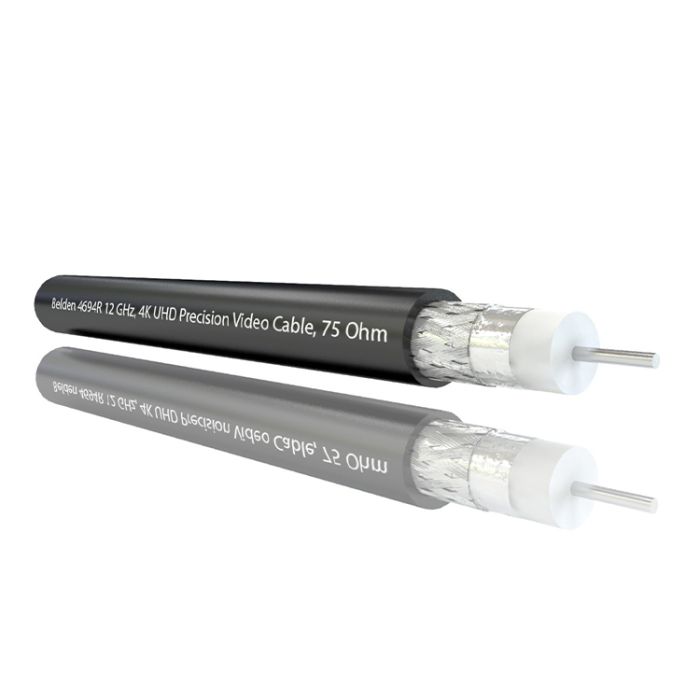

main product photo

Belden 4694R 12 GHz 4K UHD Precision Video Cable 75 ohm

Be the first to review this product
£8.12
In stock
SKU
Bel-4694R
  • Buy 10 for £7.04 each and save 13%
Add to Wish List Add to Compare

Belden 4694R 12 GHz UHD Precision Video Cable Belden 12G-SDI coaxial solutions maxi- mize 4K signal transmission distance on a single coax, minimizing weight and space compared to dual- or quad-link configurations.

Technical Specifications

12G-SDI cables guaranteed 15 dB RL Limit from 4,5 to 12GHz for 8-11 dB headroom against SMPTE limit Inner foil bonded to the core on 12G-SDI cables for easier termination New custom mixed formula for gas-injected foam high-density polyethylene insulation

  • Conductor:
    Inner : 18 AWG solid silver plated copper
    Diameter : 1.016 mm|Outer : TC - Tinned Copper braid
    Coverage (%): 95.000

  • Insulation:
    Material : Gas-injected FHDPE - Foam High Density Polyethylene
    Diameter : 4.572 mm

  • Outer Shield:
    Layer 1 Duofoil® Tape Aluminum Foil-Polyester Tape-Aluminum Foil Coverage 100%
    Layer 2 Braid TC - Tinned Copper braid Coverage 95%
  • Outer Jacket:
    Material: PVC - Polyvinyl Chloride
    Overall Nominal Diameter: 6.960 mm

  • Printing:
    Belden 4694R 12 GHz 4K UHD Precision Video Cable 75 Ohm

  • Weight:
    61.016 Kg/Km

  • Operating Temperature Range:
    -30°C To +75°C





More Information
More Information
Change Image Yes
Datasheet https://directcablesystems.com/media/datasheets/4694R_techdata.pdf
Non-Priority No
Price on Application No
