Evolution XPC OFC Professional Microphone Cable

£1.28
In stock
Only %1 left
SKU
E301-005

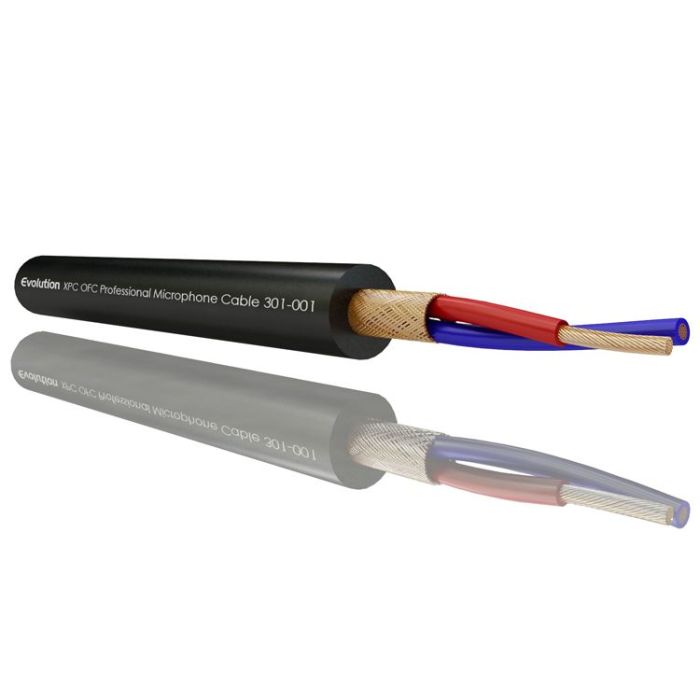

Evolution XPC OFC Professional Microphone cable, red & blue 24 AWG pure OFC copper conductors are carefully constructed with the added benefit of a Kevlar strength member and cotton fillers. Not only does this tight packing cut down microphonic noise, but it also stops capacitance fluctuations maintaining the 60pF core-to-core and reducing handling problems, especially on long runs. The inner pair is closely lapped in an OFC copper spiral screen offering excellent coverage and then over-sheathed in a rugged yet flexible matt abrasion-resistant PVC/neoprene jacket. Widely used in Professional Touring, Film & TV, West End Musicals, and Outside Broadcast applications.



Technical Specifications
  • Conductor:
    28 x 0.10mm 24 AWG pure OFC copper

  • Insulation:
    XLPE polyethylene

  • Strength member:
    Kevlar

  • Shield:
    80 x 0.10mm lapp pure OFC copper

  • Overall Jacket:
    Flexible matt black abrasion-resistant PVC
  • Overall Diameter:
    6.35mm

  • Jacket Colour:
    Black, Blue, Red, Green & Yellow

  • Resistance:
    85 Ohm/Km

  • Capacitance:
    60pF/m core to core 110pF/m core to screen

  • Operating Temp:
    -20℃ - +70℃



More Information
Change Image Yes
Datasheet https://directcablesystems.com/media/datasheets/301-001,301-002,301-003,301-004,301-005_-_evolution_xpc_ofc_professional_microphone_cable.pdf
Non-Priority Yes
Price on Application No
