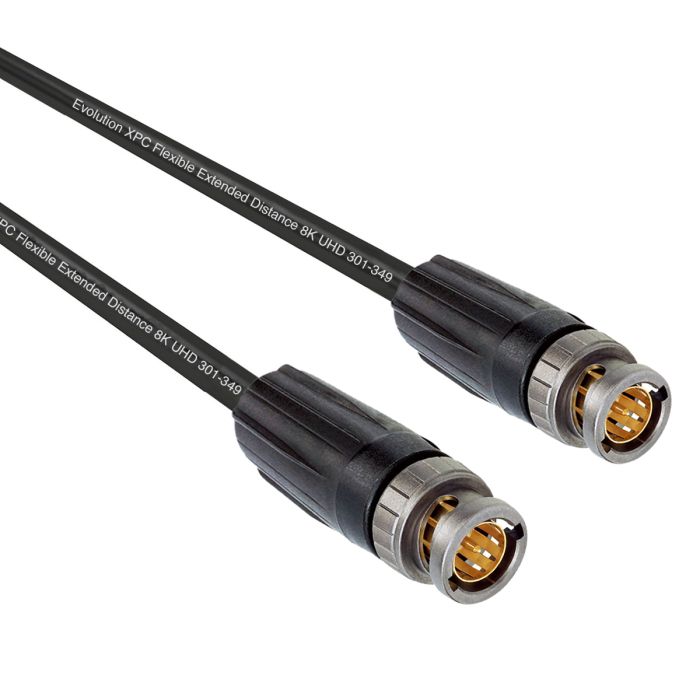

Evolution XPC 12G Flexible UHD BNC/BNC
As low as
£22.80
In stock
Only %1 left
SKU
A130-901-950-12GF
a high-performance 12 GHz RG6 coax cable, designed for UHD/SDI and high-res video applications. Features dual braided shields, silver-coated copper conductor, and an extra-flexible TPU jacket. Meets SMPTE standards.
Technical Specifications Evolution XPC Flexible Extended Distance 8K UHD 301-349
|
|
Technical Information Neutrik BNC Cable Connectors
Product
| Title | NBNC75BDD6X |
| Connection Type | BNC 75 Ω |
| Gender | Male |
Electrical
| Contact resistance | ≤ 3 mΩ (inner) |
| Contact resistance | ≤ 2 mΩ (outer) |
| Dielectric strength | 1.5 kVdc |
| Impedance | 75 Ω |
| Insulation resistance | > 5 GΩ |
| Rated voltage | < 50 V |
| VSWR | ≤1.06 / >30 dB up to 6 GHz ≤1.13 / >24 dB up to 12 GHz ≤1.22 / >20 dB up to 18 Ghz |
Mechanical
| Cable O.D. | 4.3 mm |
| Cable retention | > 30 N (center) |
| Crimp size | 4.53 Hex crimp (shield) |
| Crimp size (pin) | 1.07 crimp |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Wiresize |
|
| Locking device | Bayonett |
| Cable anchoring | Jacket crimping |
Material
| Contacts | Brass (CuZn35Pb2), 0.2 µm AuCo (center contact) |
| Insert | Brass (CuZn39Pb3) |
| Shell | Antraloy |
| Shell plating | PP |
Environmental
| Temperature range | - 30 °C to +85 °C |
| Contact crimpability | Complies with IEC 60803 and IEC 60352-2 |
| Change Image | No |
|---|---|
| Datasheet | https://directcablesystems.com/media/datasheets/evolution-xpc-12g-flexible-uhd-bnc-bnc.pdf |
| Non-Priority | Yes |
| Price on Application | No |
