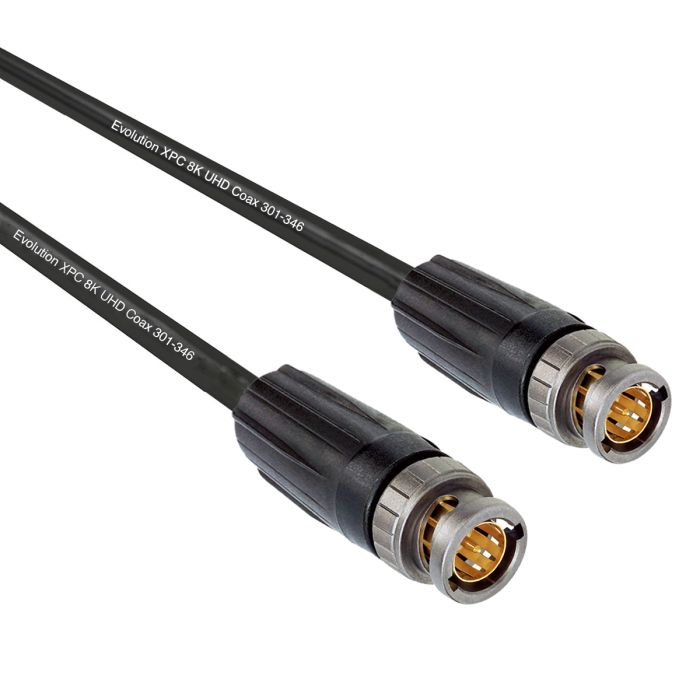

Evolution XPC 12 Minature UHD BNC/BNC 3M
£26.85
In stock
SKU
130-853-12G
- Buy 10 for £23.27 each and save 13%
a 12GHz coax cable designed for high-quality 8K and 4K UHD transmission. It features a silver-plated copper conductor, gas-injected foam dielectric, and excellent shielding for superb signal quality. This cable meets SMPTE ST2082-1 and ST2083-1 standards, ensuring top-notch digital video performance. With an easy-to-strip jacket and dielectric, it simplifies connector termination. It's UL-rated as CMR and UV-resistant, suitable for various permanent installations.
Technical Specifications Evolution XPC 8K UHD Coax 301-346
|
|
Technical Information Neutrik BNC Cable Connectors
Product
| Title | NBNC75BDD6X |
| Connection Type | BNC 75 Ω |
| Gender | Male |
Electrical
| Contact resistance | ≤ 3 mΩ (inner) |
| Contact resistance | ≤ 2 mΩ (outer) |
| Dielectric strength | 1.5 kVdc |
| Impedance | 75 Ω |
| Insulation resistance | > 5 GΩ |
| Rated voltage | < 50 V |
| VSWR | ≤1.06 / >30 dB up to 6 GHz ≤1.13 / >24 dB up to 12 GHz ≤1.22 / >20 dB up to 18 Ghz |
Mechanical
| Cable O.D. | 4.3 mm |
| Cable retention | > 30 N (center) |
| Crimp size | 4.53 Hex crimp (shield) |
| Crimp size (pin) | 1.07 crimp |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Wiresize |
|
| Locking device | Bayonett |
| Cable anchoring | Jacket crimping |
Material
| Contacts | Brass (CuZn35Pb2), 0.2 µm AuCo (center contact) |
| Insert | Brass (CuZn39Pb3) |
| Shell | Antraloy |
| Shell plating | PP |
Environmental
| Temperature range | - 30 °C to +85 °C |
| Contact crimpability | Complies with IEC 60803 and IEC 60352-2 |
| Change Image | No |
|---|---|
| Length | 3 M |
| Datasheet | https://directcablesystems.com/media/datasheets/evolution-xpc-12-minature-uhd-bnc-bnc.pdf |
| Non-Priority | No |
| Price on Application | No |
