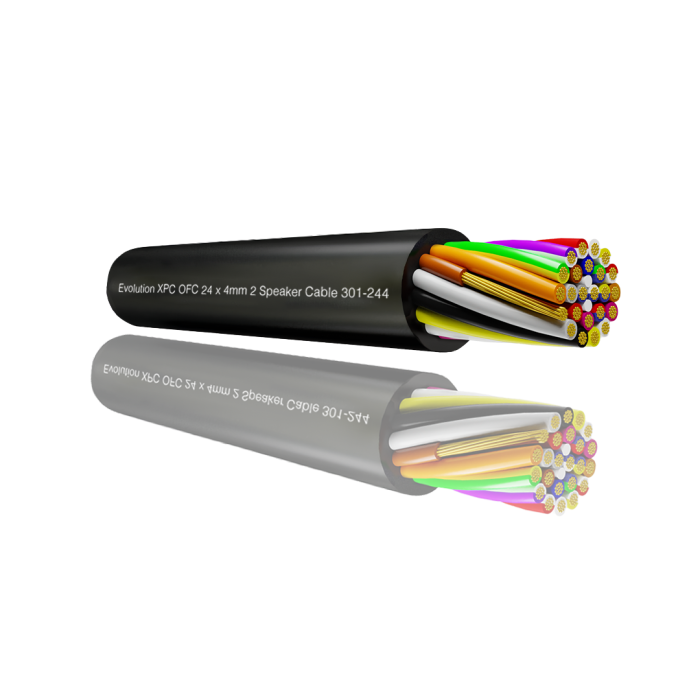

Evolution XPC OFC 24 x 4.0mm 2 Speaker Cable Per Metre
-
Buy 10 for
£31.04
each and save 13%
Technical Specifications
- Conductor:
Stranded copper wire, 127 x 0,20 mm => 4,00 mm²,
bare, (Cu-ETP1, CW003A acc to DIN EN 13602)
- Insulation:
PVC
Colours : rd, gn, bl, ye, bk, gy, wh, bn, vio, pk, or, rd/wh,
gn/wh, bl/wh, ye/wh, bk/wh, gy/wh, wh/bl, rd/bl, gn/bl,
ye/bl, bk/bl, gy/bl, bn/bl
Ø : 3,80 ± 0,15 mm
Shorehardness (A) : 88 ± 3
- Laying:
Centre : 2 cores and fillers
1. lay: 8 cores
2. lay: 14 cores
- Jacket:
Soft-PVC
Colour : Black, matt surface (optional)
Ø : 27,80 ± 0,50 mm
Shorehardness (A): 70 ± 3
pressure extrusion
|
- Test voltage:
> 2 kV
at 50 Hz eff. for 1 Minute.
- Insulation resistance:
min. : 20 MOhm x km at 20 °C
- Conductor resistance:
max. : 4,95 Ohm/km at 20 °C
- Nominal voltage Uo / U:
max. : 50/75 V AC/DC
- Temperature rating:
Static : - 30 to + 70 °C
Operating : - 10 to + 70 °C
- Flame retardant:
acc. to VDE 0482-332-1-2 / IEC 60332-1-2
|
