Evolution XPC OFC 1 or 2 Pair Heavy Duty

As low as £1.22
In stock
Only %1 left
SKU
E301-006

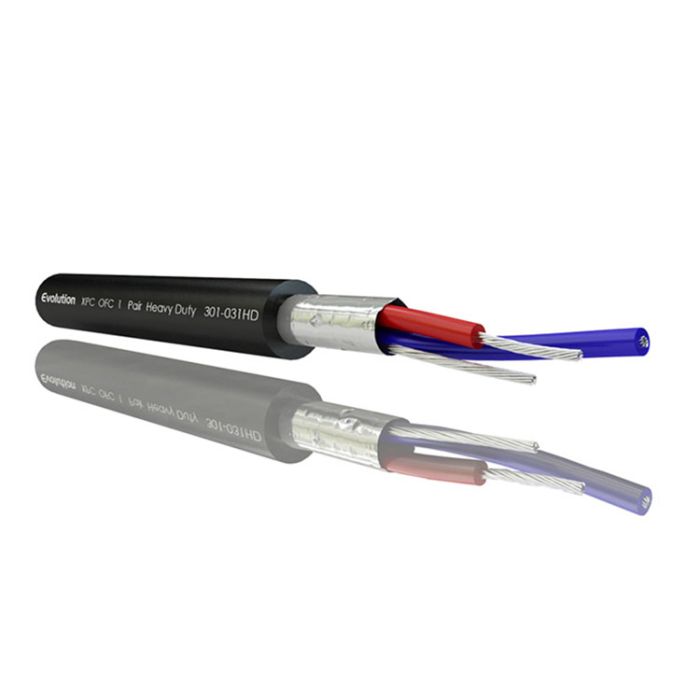

Evolution XPC OFC Heavy Duty 1 Pair is constructed exactly the same as the standard 1 pair but with larger conductors (0.5mm). Ideally suited where a low loss cable is required or where you need to run DC power over extended distances.



Technical Information
  • Conductors:
    16 x 0.20mm 20 AWG pure OFC copper

  • Insulation:
    XPLE cross lined polythene

  • Screen:
    Aluminium foil

  • Drain:
    16 x 0.20mm 20 AWG pure OFC copper tinned

  • Jacket:
    Flexible matt black abraison resistant PVC
  • Operating temp:
    -20℃ - +70℃

  • Capacitance:
    100pF/m core to core 190pF/m core to screen

  • Resistance:
    38Ohm/m

  • Overall diameter:
    1 pair 5.1mm 2 pair 8mm
More Information
Change Image No
Datasheet https://directcablesystems.com/media/datasheets/301-031hd,301-034hd_-_evolution_xpc_ofc_1_pair_heavy_duty.pdf
Non-Priority Yes
Price on Application No
