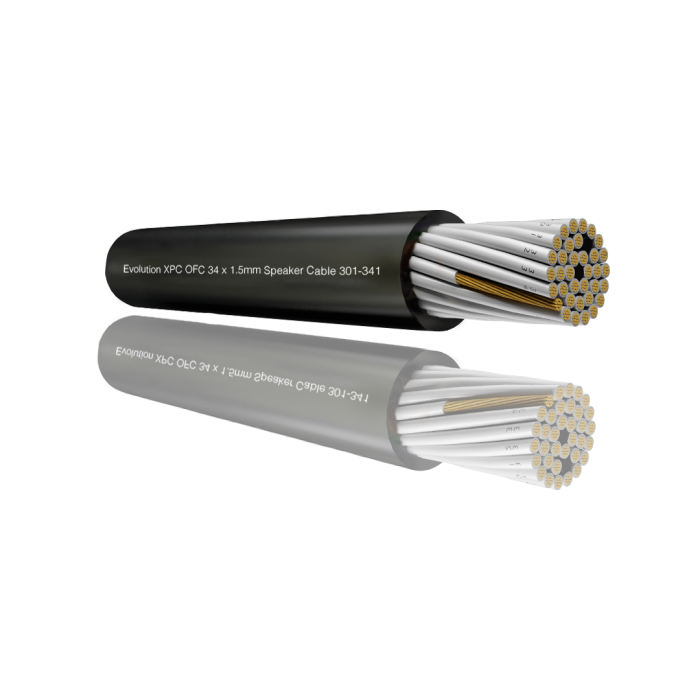

Evolution XPC OFC 34 x 1.5mm Speaker Cable Per Metre
-
Buy 10 for
£18.17
each and save 13%
Technical Specifications
- Conductor:
Stranded copper wire, class 5 acc. to IEC 60228 / VDE 0295 bare, (Cu-ETP1, CW003A acc to DIN EN 13602)
- Insulation:
PVC
Colours: gn/ye + (optional)
Shorehardness (A): 88 ± 3
- Jacket:
Soft-PVC
Colour: black, RAL 9005
Ø: 21,20 ± 0,60 mm
Shorehardness (A): 65 ± 3 pressure extrusion, talcum coated
|
- Test voltage:
> 3 kV at 50 Hz eff. for 1 minute
- Insulation resistance:
Min. : 20 MOhm x km at 20 °C
- Conductor resistance:
max. : 13,3 Ohm/km at 20 °C
- Nominal voltage Uo /U:
300 / 500 V
- Temperature rating static :
- 30 to + 70 °C operating : - 10 to + 70 °C
- Flame retardant:
Acc. to VDE 0482-332-1 / IEC 60332-1-2
|
