Neutrik FiberFOX MM 2CH OM3 Airspool NKO2M3-FX-0 5m
- Buy 10 for £569.45 each and save 16%
Features & Benefits
- Heavy-duty, connectors IP68 (even unprotected)
- Wear-free connectors, > 10.000 mating cycles without any maintenance
- No special cleaning or measurement tools required
- Cables are prolongable direct, no couplers required
- Ø = 5mm, PUR flame-retardant, halogen-free, bent tolerant
- Ready-made up with connectors EBC1502

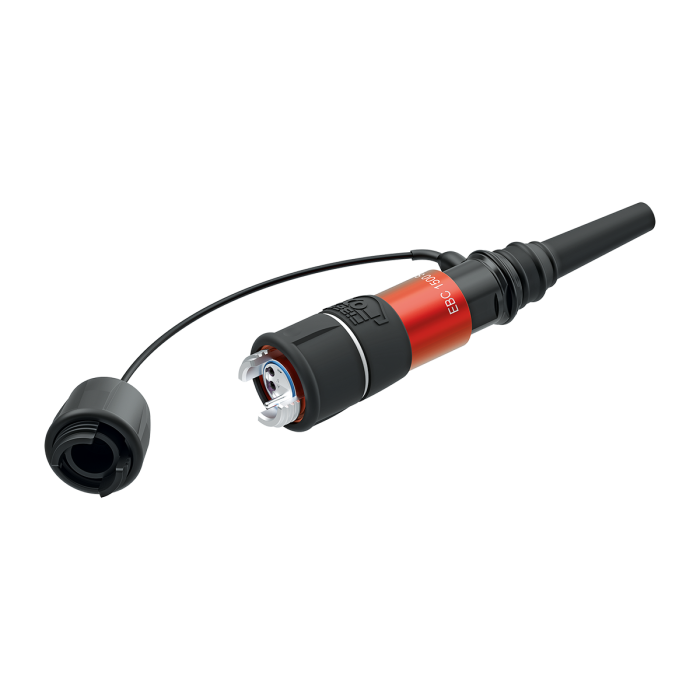

The FIBERFOX 2CH Cable connector is an expanded beam multimode hermaphroditic connector suited for a vast array of applications, including Lighting, Network, PA, Video, Broadcast, Defense & Government, Railway and Petrochemical. The innovative design ensures its ability for deployment in the toughest environments where constant performance and total reliability are critical. The connector is designed according to the MIL-DTL-83526 standard and fits all other connectors with this standard.
Benefiting from the expanded beam technology and the precision optical alignment the system creates high immunity against dust, mud, liquids and other contaminations. The FIBERFOX hermaphroditic coupling eliminates the need for adaptors and female and male mating halves. The cable connector comes pre-assembled and is not available as a single component. The finished cable is available in standardized lengths and is packed either on a drum or airspool.
Technical Information
Product
| Title | FIBERFOX 2CH |
| Code |
NKO2M3-FX-0-005 |
| Gender | Hermaphroditic |
Mechanical
| Tensile Strength | 1'800N |
| Compressive load | 50'000N |
| Lifetime | >10000 mating cycles |
| Free fall Resistance | 500 falls onto concrete from 1.2M height |
| Bump resistance | 4000 bumps @ 40g acceleration |
| Vibrational Sinusoidal | 10-500Hz, 0.75 amplitude @ 10g acceleration |
Material
| Boot |
Rubber (EPDM) |
| Insert | Steel |
| Shell | Aluminium |
| Shell plating | Hard anodize |
| Strain relief | Brass |
Environmental
| Flammability | UL 94 V-0 |
| Protection class | IP68 (6m water depth and 30min) mated and unmated |
| Compatibility | MIL-DTL-83526 |
| Temperature range | -40°C to + 70°C |
Optical
| Insertion loss | Typ. 0.7dB per Connector / Max. 1.0dB per Connector |
| Optical connector | EBC |
| Optical wiring ISO / IEC 11801 | ISO / IEC 11801 |
Mobile cable
| Colour | Black, shinny |
| Core diameter | Multimode 50µm |
| Cladding diameter | 125 µm |
| Comment | PUR, halogen free |
| minimal bending radius | 5 cm |
| Number of fibers | 2 |
| Cable rentation | Aramid yarn |
| Weight | 23kg/km |
| Overal diameter | Ø 5 cm |
| Downloads Data | https://directcablesystems.com/media/downloads_data/nko2m3-fx_drawing_01.pdf https://directcablesystems.com/media/downloads_data/nko2m3-fx_drawing_01.dwg https://directcablesystems.com/media/downloads_data/nko2m3-fx_step_01.step https://directcablesystems.com/media/downloads_data/bda_626_v1-fiberfox_cleaning_and_inspection.pdf https://directcablesystems.com/media/downloads_data/neutrik-fiberfox_nf32_v02_202111.pdf https://directcablesystems.com/media/downloads_data/nds21_v2-fiberfox_2ch.pdf |
|---|---|
| Change Image | No |
| Neutrik Code | NKO2M3-FX-0-5 |
| Brand | Neutrik |
| Datasheet | https://directcablesystems.com/media/downloads_data/fiberfox-2ch-cable.pdf |
| Length | 5 M |
| Type | Airspool |
| Size | 2 Channel |
