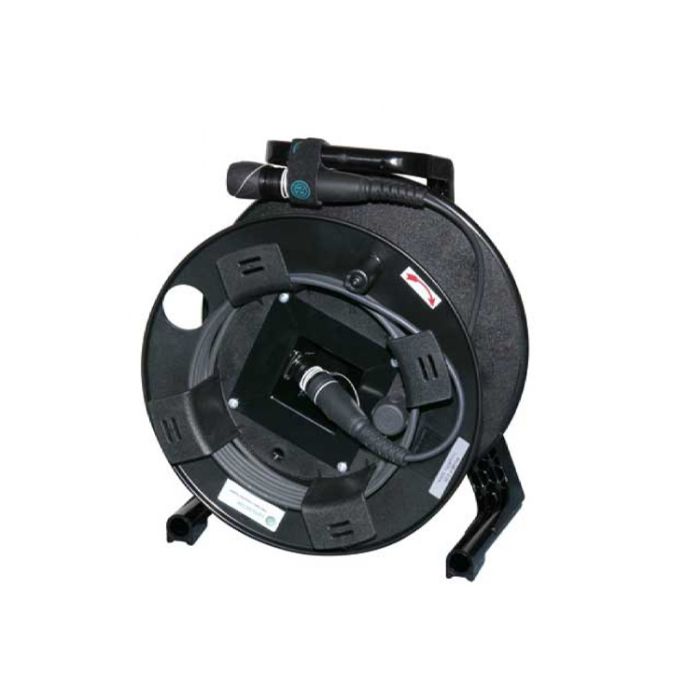

Neutrik opticalCON MTP12 Multimode Cable Drum Mounted
Features & Benefits
- Rugged 12-channel fibre optic connection system
- For Point-to-Point multichannel routing
- Innovative spherical shutter guarantees low maintenance
- Dust and water resistant according to IP65 in mated condition
Neutrik opticalCON MTP Multimode Drum Mounted Cable
Assembled, rugged and lightweight 12-channel mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket, available in multi-mode (PC).
The opticalCON MTP® cable connector accommodates 12 optical fibres (multimode PC) based on conventional and proven MTP® connectivity protected by a ruggedized and durable all-metal housing. It features a spring-loaded push-pull locking mechanism and excellent cable retention utilizing aramid yarn. The optical connection is exceptionally well protected against dirt and dust by an automatically operated sealing cover.
The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on a drum or air spool.
Technical Information
Product
| Title | opticalCON MTP® |
Mechanical
| Cable retention | 500 N |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 2500 mating cycles |
| Wiresize | |
| Locking device | Push-Pull |
Material
| Boot | Rubber (EPDM) |
| Bushing | Zinc diecast (ZnAl4Cu1) |
| Insert | Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Strain relief | Brass (CuZn39Pb3) + PU, Ni |
Environmental
| Temperature range | -40°C to +75 °C |
Optical
| Insertion loss | < 0.9 dB |
| Optical connector | MTP® ELITE female |
| Optical wiring | Method A |
Mobile cable
| Colour | black, matte |
| Core diameter | Multimode 50 µm OM3 |
| Cladding diameter | 125 µm |
| Comment | PUR |
| minimal bending radius | 8.2 cm |
| Number of fibres | 12 |
| Cable retention | Aramid yarn |
| Weigth | 103 kg/km |
| Overal diameter | 8.2 mm |
