Neutrik opticalCON QUAD Multimode Cable Drum Mounted
Features & Benefits
- Ruggedized and dirt-protected fiber optic connection system
- Waterproof acc. to IP65 safety standard in mated condition
- 2-pole military-approved robust and lightweight mobile field cable with multi- or single-mode fibers
- opticalCON multimode fibre cables offer laser and bend-optimized OM3 fibres
- Accommodates standard optical LC-Duplex connectors
- Cable connector features rugged all-metal housing and heavy-duty cable retention
- Excellent dust and dirt protection due to automatic sealing shutter with silicone gasket
- Reliable Push-Pull locking mechanism
- Easy to clean, no special tools required
- Available in different packaging versions

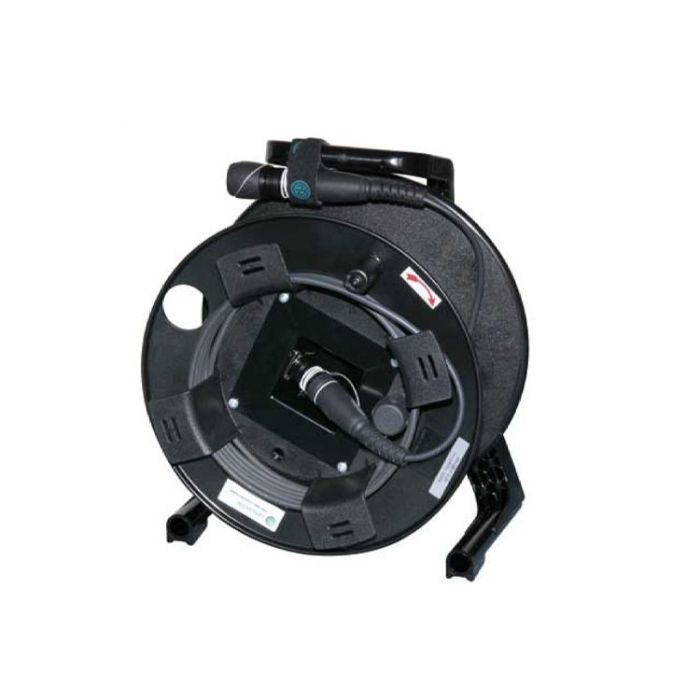

Neutrik opticalCON Quad Multimode Drum Mounted Cable
Assembled, rugged and lightweight 4-channel mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket, available in multi mode (PC or APC).
The opticalCON QUAD cable connector accommodates four PC optical channels based on conventional and proven LC connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover. The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.
Technical Information
Product
| Title | opticalCON QUAD |
| Gender | Male |
Mechanical
| Cable retention | 500 N |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 5000 mating cycles |
| Wiresize | |
| Locking device | Push-Pull |
Material
| Boot | Rubber (EPDM) |
| Bushing | Zinc diecast (ZnAl4Cu1) |
| Insert | Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Strain relief |
Polyacetal (POM) (brass) |
Environmental
| Temperature range | -40 °C to +75 °C |
Optical
| Fiber type | PVC |
| Insertion loss | < 0.45 dB / connection |
| Optical wiring | ISO / IEC 11801 |
Mobile cable
| Colour | black, matte |
| Core diameter | single mode 9 µm, multi mode 50 µm |
| Cladding diameter | 125 µm |
| Comment | PUR |
| minimal bending radius | 5.8 cm |
| Number of fibers | 4 |
| Cable retention | Aramid yarn |
| Weigth | 31 kg/km |
| Overal diameter | 5.8 mm |
