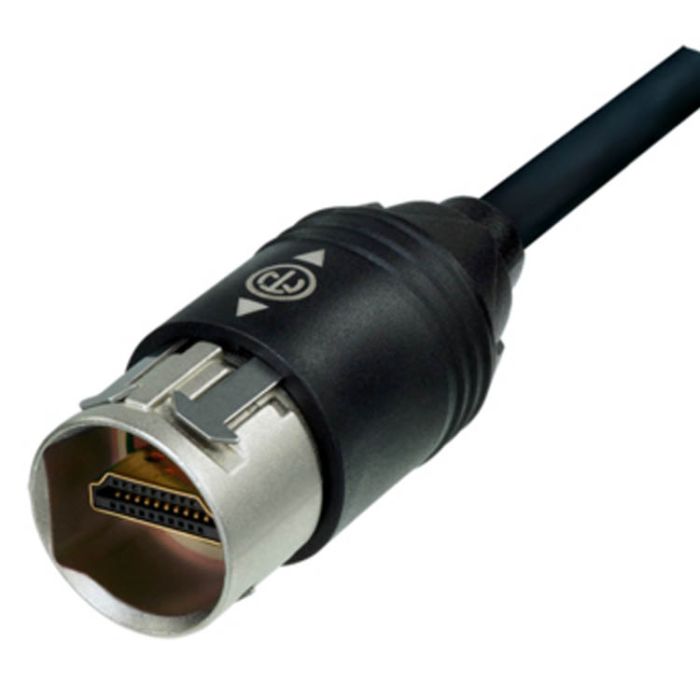

Neutrik NKHDMI HDMI 1.4 Cable 10M
£80.15
In stock
SKU
NKHDMI-10
- Buy 10 for £67.33 each and save 16%
Features & Benefits
- Data rate up to 18 GBit/s
- IP65 ingress protection in mated condition with NAHDMI-* and SCDP-* sealing gasket
- Push Pull mating design provides secure locking system if mated with NAHDMI-W*
- Shielded connection - high noise immunity and EMI protection
- Removable rugged diecast cable carrier
- Mates with conventional HDMI receptacles if cable carrier is removed
The HDMI patch cables with over-moulded flex relief and rugged metal cable carrier fit and lock with NAHDMI-W-*.
The cables are available in 0.6 m, 1 m, 3 m, 5 m and 10 m cable lengths.
Neutrik's HDMI solution for transmitting any digital TV and PC video format including high-definition video (HDTV) can be integrated into networks very easily.
Technical Information
Product
| Title | NKHDMI-* |
| Gender | male |
Mechanical
| Minimum bending radius allowed | 40 mm |
| Lifetime | > 1000 mating cycles |
| Locking device | Push-Pull |
| Overall cable diameter | 6,5 mm |
Material
| Contact plating | Au |
| Contacts | Brass (CuZn39Pb3) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Cable jacket material | PVC |
Environmental
| Flammability | UL 94 V-0 |
| Standard compliance | HDMI 2.0 specifications for length up to 3 m incl. HDMI 1.4 specifications for length > 3 m |
| Temperature range | -25 °C to +85 °C |
| Downloads Data | https://directcablesystems.com/media/downloads_data/nkhdmi-1.pdf https://directcablesystems.com/media/downloads_data/nkhdmi-1-1.dxf https://directcablesystems.com/media/downloads_data/multimedia-series-ip-65-test-report.pdf |
|---|---|
| Change Image | No |
| Neutrik Code | NKHDMI-10 |
| Datasheet | https://directcablesystems.com/media/downloads_data/nkhdmi.pdf |
| Length | 10 M |
| Price on Application | No |
| Non-Priority | No |
