Neutrik opticalCON QUAD Multimode Cable 50M Drum Mounted GT310

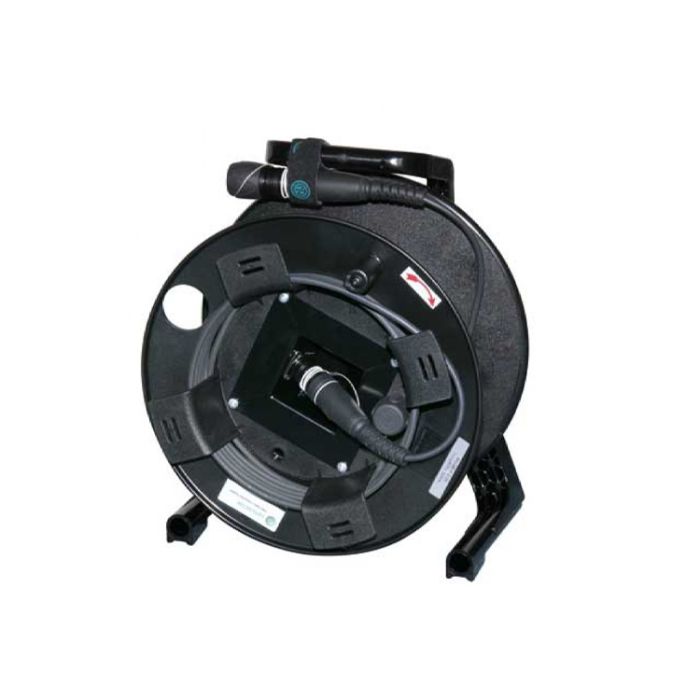

Neutrik opticalCON Quad Multimode Drum Mounted Cable
Assembled, rugged and lightweight 4-channel mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket, available in multi mode (PC or APC).
The opticalCON QUAD cable connector accommodates four PC optical channels based on conventional and proven LC connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover. The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.
Technical Information
Product
| Title | opticalCON QUAD |
| Gender | Male |
Mechanical
| Cable retention | 500 N |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 5000 mating cycles |
| Wiresize | |
| Locking device | Push-Pull |
Material
| Boot | Rubber (EPDM) |
| Bushing | Zinc diecast (ZnAl4Cu1) |
| Insert | Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Strain relief |
Polyacetal (POM) (brass) |
Environmental
| Temperature range | -40 °C to +75 °C |
Optical
| Fiber type | PVC |
| Insertion loss | < 0.45 dB / connection |
| Optical wiring | ISO / IEC 11801 |
Mobile cable
| Colour | black, matte |
| Core diameter | single mode 9 µm, multi mode 50 µm |
| Cladding diameter | 125 µm |
| Comment | PUR |
| minimal bending radius | 5.8 cm |
| Number of fibers | 4 |
| Cable retention | Aramid yarn |
| Weigth | 31 kg/km |
| Overal diameter | 5.8 mm |
Neutrik opticalCON Quad Multimode Drum Mounted Cable
Assembled, rugged and lightweight 4-channel mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket, available in multi mode (PC or APC).
The opticalCON QUAD cable connector accommodates four PC optical channels based on conventional and proven LC connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover. The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.
Technical Information
Product
| Title | opticalCON QUAD |
| Gender | Male |
Mechanical
| Cable retention | 500 N |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 5000 mating cycles |
| Wiresize | |
| Locking device | Push-Pull |
Material
| Boot | Rubber (EPDM) |
| Bushing | Zinc diecast (ZnAl4Cu1) |
| Insert | Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Strain relief |
Polyacetal (POM) (brass) |
Environmental
| Temperature range | -40 °C to +75 °C |
Optical
| Fiber type | PVC |
| Insertion loss | < 0.45 dB / connection |
| Optical wiring | ISO / IEC 11801 |
Mobile cable
| Colour | black, matte |
| Core diameter | single mode 9 µm, multi mode 50 µm |
| Cladding diameter | 125 µm |
| Comment | PUR |
| minimal bending radius | 5.8 cm |
| Number of fibers | 4 |
| Cable retention | Aramid yarn |
| Weigth | 31 kg/km |
| Overal diameter | 5.8 mm |
| Downloads Data | https://directcablesystems.com/media/downloads_data/strichzeichnung_nko4_x-a.pdf https://directcablesystems.com/media/downloads_data/strichzeichnung_nko4_x-a.dxf https://directcablesystems.com/media/downloads_data/bda_522_v2-opticalcon_quad_handling_instruction.pdf https://directcablesystems.com/media/downloads_data/opticalcon-quad-technical-paper-v1.pdf https://directcablesystems.com/media/downloads_data/opticalcon-availability.pdf https://directcablesystems.com/media/downloads_data/reference-projects-opticalcon.pdf https://directcablesystems.com/media/downloads_data/neutrik-opticalcon_pg-nf05_v27-2023_01.pdf https://directcablesystems.com/media/downloads_data/opticalcon-audio-video-lighting-application.pdf https://directcablesystems.com/media/downloads_data/opticalcon-broadcast-application-ob-truck.pdf https://directcablesystems.com/media/downloads_data/nds07-opticalcon_quad_advanced.pdf |
|---|---|
| Change Image | No |
| Neutrik Code | NKO4M-A-2-50 |
| Datasheet | https://directcablesystems.com/media/downloads_data/opticalcon-quad.pdf |
| Length | 50 M |
| Price on Application | No |
| Non-Priority | No |
