Neutrik opticalCON MTP12 X-Treme Singlemode 200M
- Buy 10 for £2,713.00 each and save 8%
Features & Benefits
- opticalCON X-TREME cable for demanding applications like touring/rental or outdoor broadcast
- opticalCON multimode fibre cables offer laser and bend-optimized OM3 fibres
- Offers a cut-proof and rodent-resistant double-jacket, glass-yarn armoured cable construction
- Rugged 12-channel fiber optic connection system
- For Point-to-Point multichannel routing
- Innovative spherical shutter guarantees low maintenance
- Dust and water resistant according to IP65 in mated condition

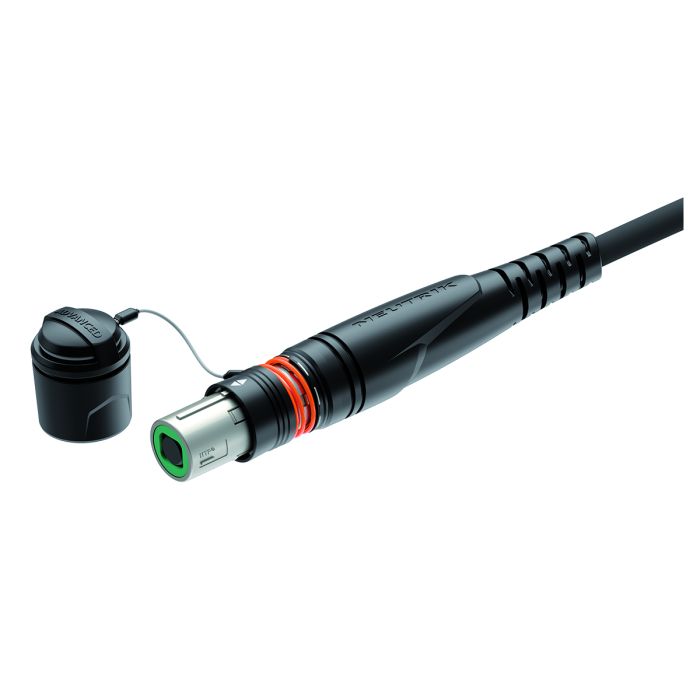

Neutrik opticalCON MTP® 12 X-Treme Singlemode Cable
Assembled, 12-channel X-TREME cable offering a cut-proof and rodent-resistant double jacket glass yarn armoured cable construction. Excellent cable retention due to aramid yarn, and black PUR outer jacket.
The opticalCON MTP® cable connector accommodates 12 optical fibres (single mode APC) based on conventional and proven MTP® connectivity protected by a ruggedized and durable all-metal housing. It features a spring-loaded push-pull locking mechanism and excellent cable retention utilizing aramid yarn. The optical connection is exceptionally well protected against dirt and dust by an automatically operated sealing cover.
The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on a drum or air spool.
Technical Information
Product
| Title | opticalCON MTP® X-TREME |
Mechanical
| Cable retention | 500 N |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 2500 mating cycles |
| Wiresize | |
| Locking device | Push-Pull |
Material
| Boot | Rubber (EPDM) |
| Bushing | Zinc diecast (ZnAl4Cu1) |
| Insert | Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Strain relief | Brass (CuZn39Pb3) + PU, Ni |
Environmental
| Temperature range | -40°C to +75 °C |
| Flammability |
UL 94 HB |
Optical
| Insertion loss | < 0.9 dB /connection |
| Optical connector | MTP® ELITE female |
| Optical wiring | Method A |
Mobile cable
| Colour | black, matte |
| Core diameter | Singlemode 9 µm OM3 |
| Cladding diameter | 125 µm |
| Comment | PUR |
| minimal bending radius | 10.8 cm |
| Number of fibres | 12 |
| Cable retention | Aramid yarn |
| Weigth | 103 kg/km |
| Overal diameter | 10.8 cm |
| Downloads Data | https://directcablesystems.com/media/downloads_data/3d_ansicht_no12_x-a_xtreme.stp https://directcablesystems.com/media/downloads_data/strichzeichnung_no12_x-a.pdf https://directcablesystems.com/media/downloads_data/strichzeichnung_no12_x-a.dxf https://directcablesystems.com/media/downloads_data/nds11-opticalcon_mtp_x-treme.pdf https://directcablesystems.com/media/downloads_data/bda_649__v1-opticalcon_mtp12_verdrahtungsschema.pdf https://directcablesystems.com/media/downloads_data/neutrik_opticalcon_guide-nf05_v28-202403.pdf |
|---|---|
| Change Image | No |
| Neutrik Code | NKOX12S-A-0-200 |
| Datasheet | https://directcablesystems.com/media/downloads_data/opticalcon-mtp-r-12-x-treme-cable.pdf |
| Length | 200 M |
| Price on Application | No |
| Non-Priority | No |
