NYS373 Phono Plug Gold Plated
As low as
£0.31
In stock
Only %1 left
SKU
nys373-phono-plug-gold-plated

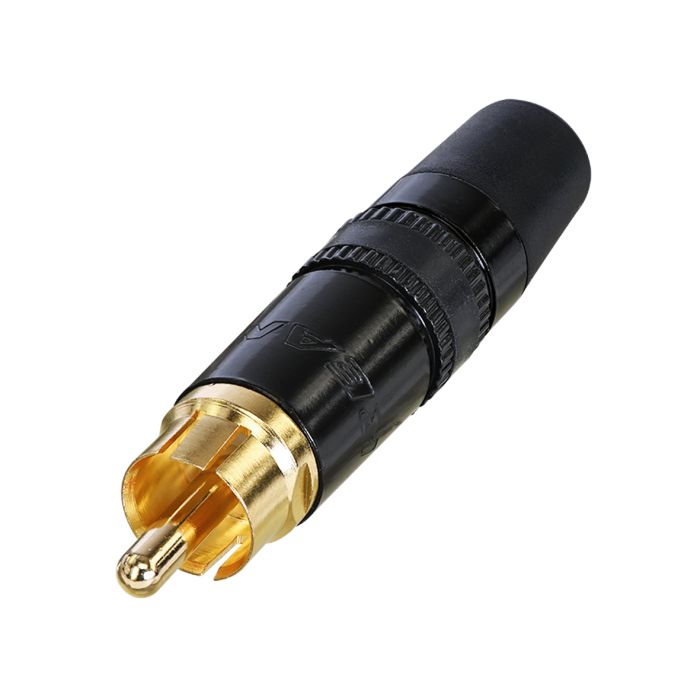

Phono plug, black housing, gold plated contacts, rubber anti-kink boot, chuck type strain relief, cable O.D. 3.5 - 6.1 mm
Neutrik NYS373 and Gold Plated Phono Plug
Gold plated phono plugs which use the Neutrik style chuck strain relief system. Black bodies with a choice of six coloured identification markers. Each connector is supplied with two sizes of spring cable support.
Technical Information
Product
| Title | NYS373 |
| Connection Type | Phono ("RCA/Cinch") |
Electrical
| Contact Resistance | ≤10 mΩ |
| Insulation Resistance | >2000 MΩ(Initial) |
| Rated Voltage | 0.5 VAC |
Mechanical
| Insertion and Withdrawal Force | 5-20N |
| Lifetime | >5000 Mating Cycles |
Material
| Pin | Brass |
| Housing | Copper |
| Housing | Zinc |
| Boot | PVC |
| Ground Contact | H62 |
| Chuck | PA6 |
| Color dividing ring | Rubber |
| Elastic clamp | ABS |
| Pin | Gold |
| Housing | Gold |
| Ground Contact | Gold |
| Housing | Black |
| Change Image | Yes |
|---|---|
| Non-Priority | Yes |
| Price on Application | No |
