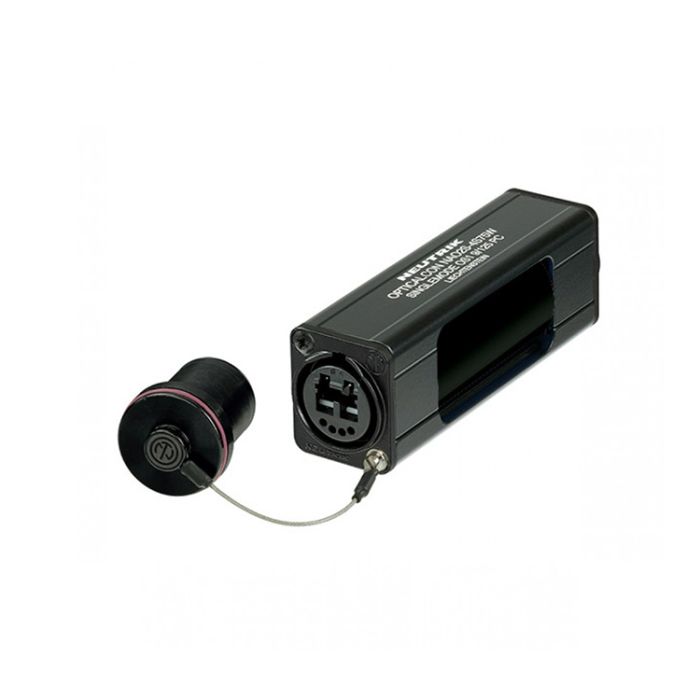

Neutrik Weatherproof opticalCON Duo Coupler
Out of stock
Only %1 left
SKU
Weatherproof-opticalCON-Couplers
Weatherproof opticalCON DUO coupler (adapter) LC-Duplex for cable extensions with 4 copper wires (0.75 mm²).
Type
| Produkt | NAO2M-H1W-A | NAO2S-H1W-A | NAO2SA-H1W-A |
| Fiber Mode | multi-mode PC | single-mode PC | single-mode APC |
| Color Coding | Black | Blue | Green |
Technical Information
Product
| Title | NAO2*-H1W-A |
| Connection Type | Adapter |
| Gender | Female |
Electrical
| Contact resistance | < 7 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 2 GΩ (initial) |
| Rated current per contact | 6 - 10 A (Contact 1+4 10 A, Contact 2+3 6 A) |
| Rated voltage | < 50 V |
Mechanical
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | |
| Locking device | Push-Pull |
Material
| Contact plating | 0.2 µm Au over 2 µm Ni |
| Contacts | Bronze (CuSn6) |
| Insert | Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR) |
| Shell | AlMgSi 0.5, black plated |
| Split sleeve | ceramics |
Environmental
| Temperature range | -30 °C to +80 °C |
Optical
| Insertion loss | < 0.4 dB / connection |
| Optical connector | LC-Duplex |
| Downloads Data | https://directcablesystems.com/media/downloads_data/nao2_-h1w-a-1.pdf https://directcablesystems.com/media/downloads_data/nao2_-h1w-a.dxf https://directcablesystems.com/media/downloads_data/reference-projects-opticalcon.pdf https://directcablesystems.com/media/downloads_data/neutrik_opticalcon_v22_low.pdf |
|---|---|
| Change Image | Yes |
| Neutrik Code | NAO2*-H1W-A |
| Datasheet | https://directcablesystems.com/media/downloads_data/nao2-h1w-a.pdf |
| Price on Application | No |
| Non-Priority | Yes |
